The diabetogenic mouse MHC class II molecule I-Ag7 is endowed with a switch that modulates TCR affinity
Kenji Yoshida, Adam L. Corper, Rana Herro, Bana Jabri, Ian A. Wilson, Luc Teyton
Kenji Yoshida, Adam L. Corper, Rana Herro, Bana Jabri, Ian A. Wilson, Luc Teyton
View: Text | PDF
Research Article

The diabetogenic mouse MHC class II molecule I-Ag7 is endowed with a switch that modulates TCR affinity

  • Text
  • PDF
Abstract

Genetic susceptibility to autoimmunity is frequently associated with specific MHC alleles. Diabetogenic MHC class II molecules, such as human HLA-DQ8 and mouse I-Ag7, typically have a small, uncharged amino acid residue at position 57 of their β chain (β57); this results in the absence of a salt bridge between β57 and Argα76, which is adjacent to the P9 pocket of the peptide-binding groove. However, the influence of Argα76 on the selection of the TCR repertoire remains unknown, particularly when the MHC molecule binds a peptide with a neutral amino acid residue at position P9. Here, we have shown that diabetogenic MHC class II molecules bound to a peptide with a neutral P9 residue primarily selected and expanded cells expressing TCRs bearing a negatively charged residue in the first segment of their complementarity determining region 3β. The crystal structure of one such TCR in complex with I-Ag7 bound to a peptide containing a neutral P9 residue revealed that a network of favorable long-range (greater than 4 Å) electrostatic interactions existed among Argα76, the neutral P9 residue, and TCR, which supported the substantially increased TCR/peptide-MHC affinity. This network could be modulated or switched to a lower affinity interaction by the introduction of a negative charge at position P9 of the peptide. Our results support the existence of a switch at residue β57 of the I-Ag7 and HLA-DQ8 class II molecules and potentially link normal thymic TCR selection with abnormal peripheral behavior.

Authors

Kenji Yoshida, Adam L. Corper, Rana Herro, Bana Jabri, Ian A. Wilson, Luc Teyton

×

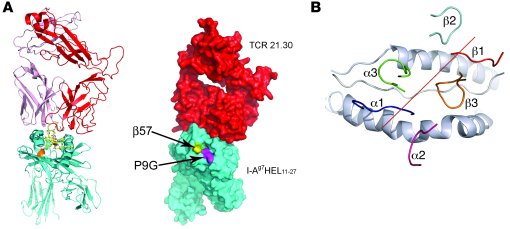

Figure 4

Overview of the TCR 21.30/I-Ag7HEL11–27 complex.

Options: View larger image (or click on image) Download as PowerPoint
Overview of the TCR 21.30/I-Ag7HEL11–27 complex.

(A) Ribbon trace of...
(A) Ribbon trace of the complex (left). The TCR 21.30 α and β chains are colored pink and red respectively. I-Ag7 is colored turquoise, except for residue β57 (orange). The HEL peptide is shown as ball-and-stick. Right panels shows the same view, with a space-filling representation showing that both β57 and the P9 pocket lie outside of the TCR footprint. (B) Diagonal orientation and footprint of the 6 CDRs of TCR 21.30 on pMHC. The red line denotes the relative diagonal orientation of the TCR to pMHC and is the linear fit to the centers of gravity of the conserved VαVβ sulfurs. The I-Ag7 α helices, which form the walls of the peptide-binding groove, are drawn as cartoon representations and are colored silver.
