Induced clustering of SHP2-depleted tumor cells in vascular islands restores sensitivity to MEK/ERK inhibition
Yuyi Wang, … , Michael Kruhlak, Giovanna Tosato
Yuyi Wang, … , Michael Kruhlak, Giovanna Tosato
Published March 25, 2025
Citation Information: J Clin Invest. 2025;135(10):e181609. https://doi.org/10.1172/JCI181609.
View: Text | PDF
Research Article Angiogenesis Oncology

Induced clustering of SHP2-depleted tumor cells in vascular islands restores sensitivity to MEK/ERK inhibition

  • Text
  • PDF
Abstract

Allosteric inhibitors of the tyrosine phosphatase Src homology 2 domain–containing protein tyrosine phosphatase 2 (SHP2) hold therapeutic promise in cancers with overactive RAS/ERK signaling, but adaptive resistance to SHP2 inhibitors may limit benefits. Here, we utilized tumor cells that proliferate similarly with or without endogenous SHP2 to explore means to overcome this growth independence from SHP2. We found that SHP2 depletion profoundly altered the output of vascular regulators, cytokines, chemokines, and other factors from SHP2 growth-resistant cancer cells. Tumors derived from inoculation of SHP2-depleted, but SHP2 growth–independent, mouse melanoma and colon carcinoma cell lines displayed a typically subverted architecture, in which proliferative tumor cells surrounding a remodeled vessel formed “vascular islands”, each limited by surrounding hypoxic and dead tumor tissue, where inflammatory blood cells were limited. Although vascular islands generally reflect protected sanctuaries for tumor cells, we found that vascular island–resident, highly proliferative, SHP2-depleted tumor cells acquired an increased sensitivity to blockage of MEK/ERK signaling, resulting in reduced tumor growth. Our results show that the response to targeted therapies in resistant tumor cells was controlled by tumor cell–induced vascular changes and tumor architectural reorganization, providing a compelling approach to elicit tumor responses by exploiting tumor- and endothelium-dependent biochemical changes.

Authors

Yuyi Wang, Hidetaka Ohnuki, Andy D. Tran, Dunrui Wang, Taekyu Ha, Jing-Xin Feng, Minji Sim, Raymond Barnhill, Claire Lugassy, Michael R. Sargen, Emanuel Salazar-Cavazos, Michael Kruhlak, Giovanna Tosato

×

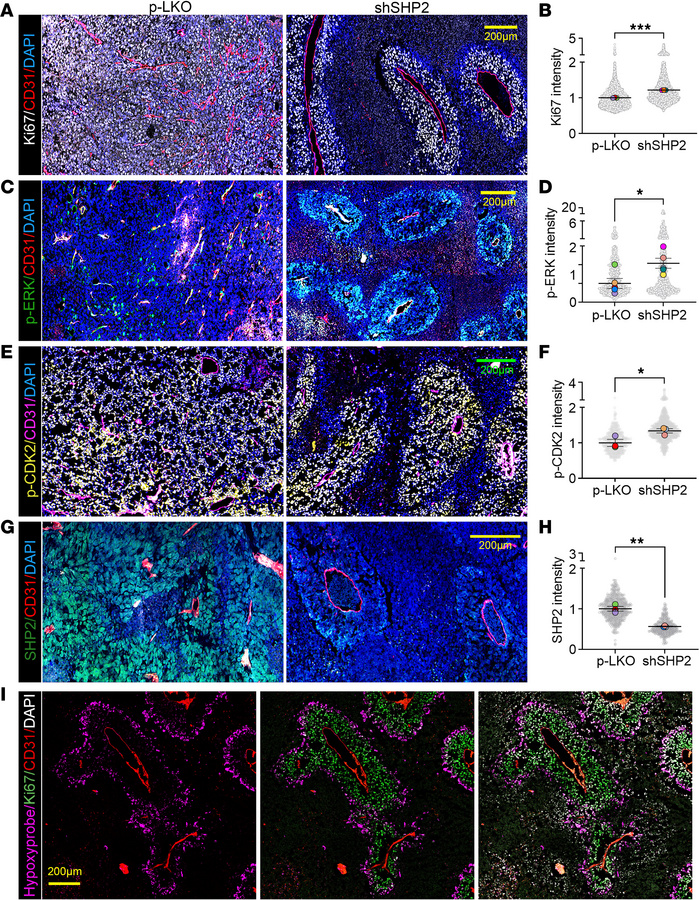

Figure 4

Characterization of SHP2-silenced B16F10 tumor architecture.

Options: View larger image (or click on image) Download as PowerPoint
Characterization of SHP2-silenced B16F10 tumor architecture.
(A and B) K...
(A and B) Ki67 and CD31 immunostaining identified a distinct structural organization of SHP2-silenced B16F10 tumors. Nuclei are stained with DAPI. Representative confocal microscopy images (A) and quantification (B) of Ki67 fluorescence intensity in tumor vascular islands from SHP2-silenced tumors (n = 3) and p-LKO control tumors (n = 3). (C and D) p-ERKT202/Y205 and CD31 immunostaining detected p-ERK in representative tumor vascular islands of SHP2-silenced B16F10 tumors (C). Quantification of p-ERK fluorescence in live tissue from p-LKO tumors (n = 5) and islands of SHP2-silenced tumors (n = 5) (D). (E and F) p-CDK2T160 and CD31 immunostaining identified the distinct structural organization of SHP2-silenced B16F10 tumors (E). p-CDK2 fluorescence quantification in p-LKO (n = 3) and SHP2-silenced (n = 3) tumor islands (F). (G and H) SHP2 and CD31 immunostaining detected strong SHP2 fluorescence intensity in representative tumor islands of control B16F10 tumors and faint SHP2 fluorescence in SHP2-silenced B16F10 tumor islands (G). SHP2 quantification in live tissue from p-LKO (n = 3) and SHP2-silenced (n = 3) tumor islands (H). In B, D, F, and H, the gray circles reflect fluorescence intensity/unit of tumor area; colored dots reflect the mean fluorescence intensity/tumor analyzed. (I) Representative confocal images of tumor islands from SHP2-silenced B16F10 tumors displaying the central CD31+ vessel surrounded by Ki67+ tumor cells limited at the periphery by a hypoxic zone (Hypoxyprobe+) and further surrounded by areas lacking identifiable DAPI+ cells. In B, D, F, and H, horizontal lines indicate the mean ± SEM. *P < 0.05, **P < 0.01, and ***P < 0.001, by 2-tailed Student’s t test. Scale bars: 200 μm.
