Dhananjay K. Kaul, Xiao-du Liu, Hee-Yoon Chang, Ronald L. Nagel, Mary E. Fabry
Published in Volume 114, Issue 8
J Clin Invest. 2004; 114(8):1136–1145 doi:10.1172/JCI21633
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

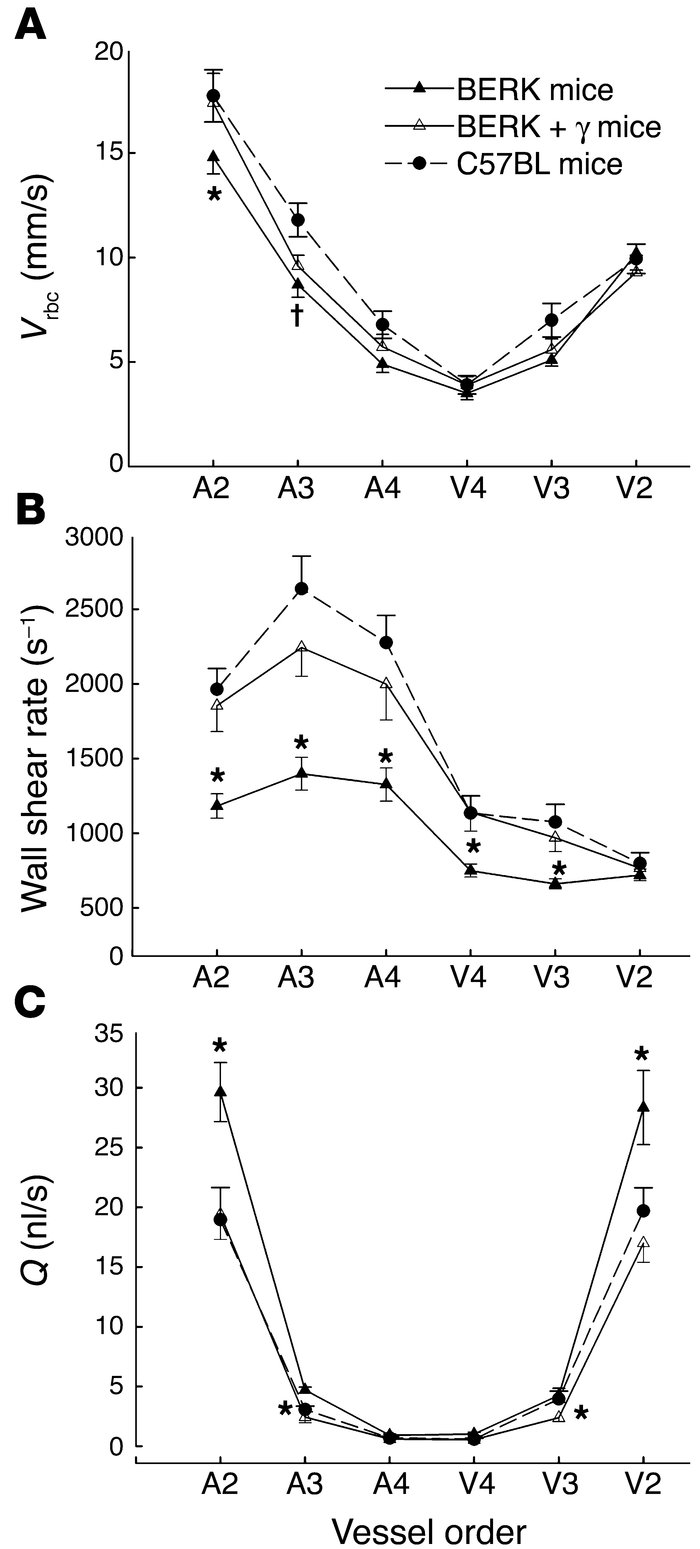

Figure 2

Arteriovenous Vrbc (A), wall shear rate (B), and Q (C) profiles in the resting cremaster muscle microcirculation of C57BL, BERK, and BERK + γ mice. Microvascular blood flow in the BERK mice is characterized by a pronounced decline in arteriolar wall shear rates, and by a greater Q in A2 and V2 vessels. Note the normalization of wall shear rates and Q in BERK + γ mice to control values. *P < 0.05 vs. C57BL and BERK mice (Kruskal-Wallis test for ANOVA); P < 0.05 vs. C57BL mice.
