Andrew P. Evan, James E. Lingeman, Fredric L. Coe, Joan H. Parks, Sharon B. Bledsoe, Youzhi Shao, Andre J. Sommer, Ryan F. Paterson, Ramsay L. Kuo, Marc Grynpas
Published in Volume 111, Issue 5
J Clin Invest. 2003; 111(5):607–616 doi:10.1172/JCI17038
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

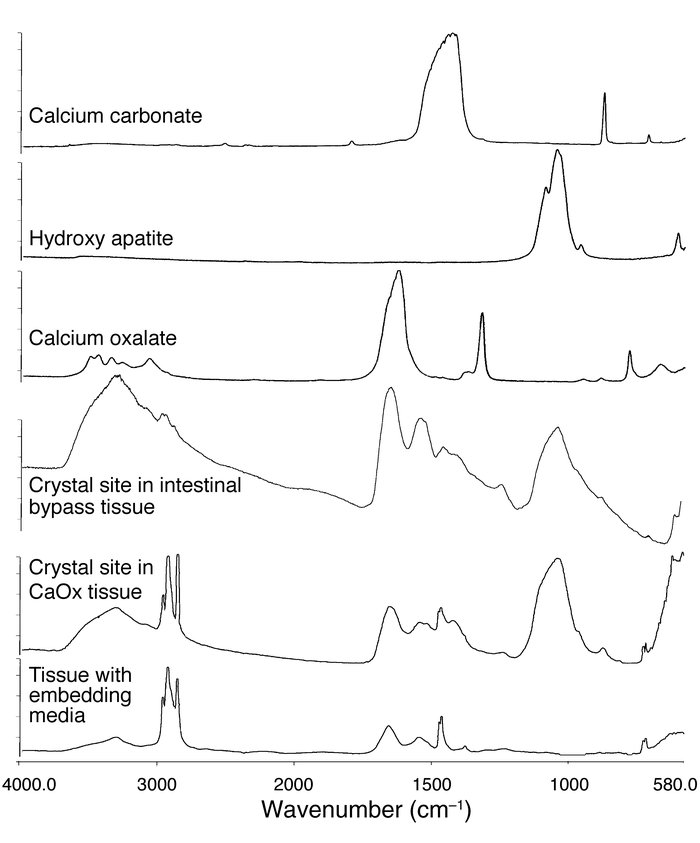

Figure 9

μ-FTIR spectra of crystal deposits in CaOx and intestinal-bypass patients. This figure illustrates a series of infrared spectra obtained for a set of standards (calcium carbonate, CaOx, and hydroxyapatite), for a site of calcium deposit (Yasue-positive area) in the tissue of a CaOx and an intestinal-bypass patient, and for the tissue-embedding medium. The infrared spectra of the Yasue-positive area for both the CaOx and intestinal-bypass patients show a spectral band for hydroxyapatite.
