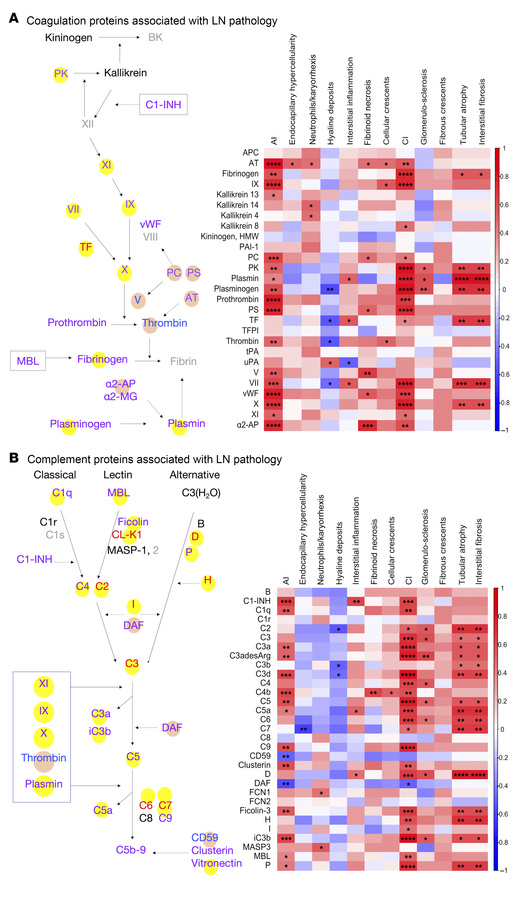

(A) The blood coagulation cascade, highlighting molecules whose levels in urine are significantly correlated with renal pathology AI (blue font), CI (CI) (red font), or both (purple font) in LN. Other proteins are listed in black font (interrogated but not significantly changed) or grey font (not interrogated by the proteomic screen). Uninterrupted arrows indicate activation, and interrupted arrows signify inhibition or cleavage of downstream protein or substrate. The yellow bubbles highlight only proteins significantly elevated in LN with high-CI versus low-CI (FC ≥ 2; P < 0.05) or higher in CI than in AI by at least 10%. The pink bubbles highlight proteins whose levels were significantly elevated only in patients with LN with high-AI versus low-AI (FC ≥ 2; P < 0.05) or higher in AI than in CI by at least 10% (in terms of correlation coefficient or FC). Also shown is a Spearman correlation heatmap displaying correlations among the 27 coagulation-related proteins and renal pathology metrics. *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001. (B) The complement activation pathway highlighting molecules whose levels in urine are significantly elevated with AI, CI, or both. See A for other annotation details. Also shown is a Spearman correlation heatmap displaying correlations among the 32 complement related proteins and their paired renal pathology metrics, as detailed in A. α2-AP, MG, α2-antiplasmin, α2-macroglobulin; APC, activated protein C; AT, antithrombin; B, factor B; BK, bradykinin; C1 INH, C1 esterase inhibitor; C4BP, C4 binding protein; CL-K1, collectin kidney 1; D, factor D; DAF, decay-accelerating factor; FDP, fibrin degradation products; H, factor H; I, factor I; MAP-1, MBL/ficolin-associated protein 1; MASP, mannan-binding lectin-associated serine protease; MBL, mannose-binding lectin; MCP, membrane cofactor protein; P, properdin; PK, prekallikrein; sMAP, small MBL-associated protein; TM, thrombomodulin; tPA, tissue plasminogen activator; uPA, urokinase.
