Thomas J. Kelley, Heather L. Elmer
Published in Volume 106, Issue 3
J Clin Invest. 2000; 106(3):403–410 doi:10.1172/JCI9560
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

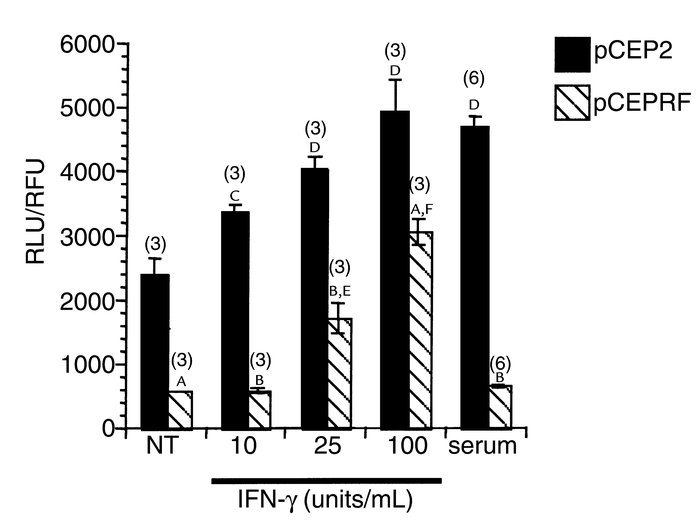

Figure 8

Stat1-mediated cell signaling in 9/HTEo pCEP2 and pCEPRF cells. Cells were cotransfected with pGAS-Luc and pEGFPN1 and stimulated with either 10, 25, or 100 units/mL IFN-γ or with 10% serum as described. Data were normalized for transfection efficiency as measured by GFP expression, and are presented as a ratio of relative light units (RLU) to relative fluorescence units (RFU). The number of experiments (n) is shown in parentheses above each bar. Error bars represent SEM. AP < 0.001; BP < 0.0001, pCEP2 vs. pCEPRF cells under each experimental condition, by Student’s t test. C,DSignificant stimulation of luciferase activity in pCEP2 cells compared with untreated (NT) pCEP2 cells as measured by Duncan’s multiple range test (CP < 0.01; DP < 0.0001). E,FSignificant stimulation of luciferase activity in pCEPRF cells compared with untreated (NT) pCEPRF cells, as measured by Duncan’s multiple range test (EP < 0.01; FP < 0.0001).
