Takashi Nagaya, Miyuki Fujieda, Goro Otsuka, Jian-Ping Yang, Takashi Okamoto, Hisao Seo
Published in Volume 106, Issue 3
J Clin Invest. 2000; 106(3):393–402 doi:10.1172/JCI7771
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium
Figure 7

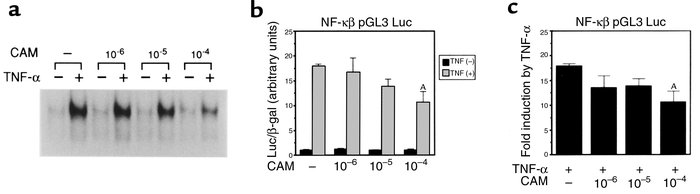

CAM inhibits NF-κB activation. (a) Inhibition of TNF-α–induced NF-κB activation by pretreatment with CAM. HepG2 cells were pretreated with CAM for 1 hour at the indicated concentration. After 1-hour treatment with TNF-α, NF-κB activation in the nuclear extracts was analyzed using EMSA. (b and c) HepG2 cells were transfected with NF-κB pGL3 Luc and treated with TNF-α and CAM for 24 hours. (b) The values of Luc/β-gal activity. AP < 0.0001 vs. TNF-α (+), CAM (–). (c) Fold induction by TNF-α. AP < 0.0001 vs. TNF-α (+), CAM (–).
