Bonny L. Dickinson, Kamran Badizadegan, Zhen Wu, Jeremy C. Ahouse, Xiaoping Zhu, Neil E. Simister, Richard S. Blumberg, Wayne I. Lencer
Published in Volume 104, Issue 7
J Clin Invest. 1999; 104(7):903–911 doi:10.1172/JCI6968
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

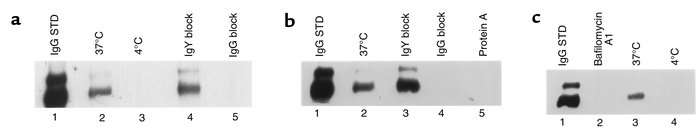

Figure 6

Specificity of IgG transport and functional dependence on the vacuolar H+ ATPase. Where transport occured, the 25-kDa biotinylated light chain of IgG is shown. (a) Apical-to-basolateral transcytosis of IgG-biotin (60 nM) in the absence or presence of a 500-fold molar excess of nonlabeled chicken IgY (30 μM) or human IgG (30 μM) (lanes 4 and 5, respectively). Lanes 2 and 3 show incubation in the absence of competitive inhibitor at 37°C and 4°C as positive and negative controls, respectively. (b) Basolateral-to-apical transcytosis of IgG-biotin (60 nM) in the absence or presence of a 500-fold molar excess of nonlabeled chicken IgY (30 μM) (lane 3) or human IgG (30 μM) (lane 4) or excess fragment B of Staphylococcal protein A (0.1 mg/mL; lane 5). Lane 2 shows incubation at 37°C as a positive control. (c) T84 cells were incubated in the presence (lane 2) or absence (lanes 3 and 4) of bafilomycin A1 (0.1 μM), and basolaterally directed transport of IgG-biotin (60 nM) was measured after 1 hour of incubation in symmetrical HBSS+ buffered to pH 8.0.
