Tania N. Petruzziello-Pellegrini, Darren A. Yuen, Andrea V. Page, Sajedabanu Patel, Anna M. Soltyk, Charles C. Matouk, Dennis K. Wong, Paul J. Turgeon, Jason E. Fish, J.J. David Ho, Brent M. Steer, Vahid Khajoee, Jayesh Tigdi, Warren L. Lee, David G. Motto, Andrew Advani, Richard E. Gilbert, S. Ananth Karumanchi, Lisa A. Robinson, Phillip I. Tarr, W. Conrad Liles, James L. Brunton, Philip A. Marsden
Published in Volume 122, Issue 2
J Clin Invest. 2012; 122(2):759–776 doi:10.1172/JCI57313
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Jci57313

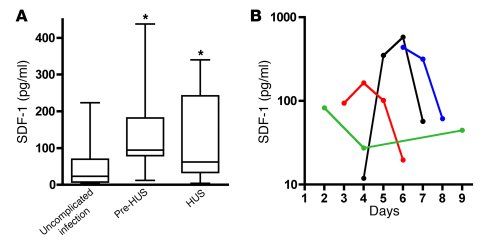

Figure 11
Circulating SDF-1 levels in HUS patients.

SDF-1 levels were measured in plasma samples from individuals infected with E. coli O157:H7. (A) Infected samples obtained from patients with uncomplicated O157:H7 infection within 4 days after the onset of diarrhea (n = 36). Horizontal bars indicate the median values, boxes indicate 25th to 75th percentiles, and whiskers indicate the minimum and maximum values. Pre-HUS, samples collected prior to HUS diagnosis in those individuals who later progressed to HUS (n = 7); HUS, samples collected on the day of HUS diagnosis (n = 22). *P < 0.05. (B) SDF-1 levels over the course of E. coli O157:H7–mediated illness. Each line represents 1 patient, and the last data point for each patient was obtained on the day of HUS diagnosis.
