Talita M. Marin, Kimberly Keith, Benjamin Davies, David A. Conner, Prajna Guha, Demetrios Kalaitzidis, Xue Wu, Jessica Lauriol, Bo Wang, Michael Bauer, Roderick Bronson, Kleber G. Franchini, Benjamin G. Neel, Maria I. Kontaridis
Published in Volume 121, Issue 3
J Clin Invest. 2011; 121(3):1026–1043 doi:10.1172/JCI44972
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

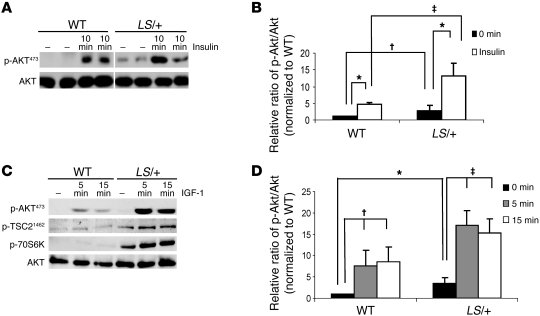

Figure 9
Activation of the Akt/mTOR pathway is enhanced in LS/+ hearts and cardiomyocytes.

(A) Whole heart lysates from either unstimulated or 10-minute insulin-stimulated (10 mU/g body weight) WT and LS/+ mice (8 weeks old) were harvested, lysed, and immunoblotted with anti-phospho–Akt473 antibodies, followed by anti-Akt antibodies to control for loading. Each lane represents an individual animal. The dividing line represents grouping of images from the same gel. (B) Quantification of data collected from 4–6 animals from each group, derived from 3 independent experiments. *P < 0.001, P < 0.05, P < 0.05. All P values were derived from ANOVA plus Bonferroni post-test when ANOVA was significant. (C) Primary cardiomyocytes from either unstimulated or IGF-1 stimulated (10 nM) WT and LS/+ mice (8 to 10 weeks old) were lysed and immunoblotted with anti-phospho–Akt473, Tsc21462, or p70S6K antibodies, as indicated, followed by anti-Akt antibodies to control for loading. (D) Quantification of Akt phosphorylation, derived from 3 independent experiments. *P < 0.05, P < 0.001, P < 0.001. All P values were derived from ANOVA plus Bonferroni post-test when ANOVA was significant.
