Stephen C. Cannon, Bruce P. Bean
Published in Volume 120, Issue 1
J Clin Invest. 2010; 120(1):80–83 doi:10.1172/JCI41340
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

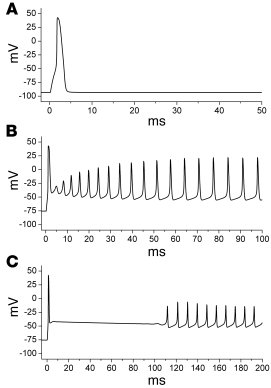

Figure 2
Resurgent sodium current effects on action potential firing in a simulated skeletal muscle fiber.

Membrane voltage response to a brief suprathreshold stimulus is shown for 3 different sodium channel configurations. (A) With normal sodium channels, a single action potential is elicited. (B) Simulation of the sodium channel defect in PMC (5-fold slower rate of inactivation compared with wild-type channels, plus 3% resurgent current), which produces a sustained burst of myotonic after-discharges. (C) Artificial enhancement of the resurgent properties beyond the 3% used to simulate PMC results in a brief depolarized plateau, which decays to a myotonic burst. Sustained depolarization with action potential failure, as occurs in periodic paralysis, cannot be generated by enhancement of the resurgent sodium current alone.
