Yue Si, Chia-Lin Tsou, Kelsey Croft, Israel F. Charo
Published in Volume 120, Issue 4
J Clin Invest. 2010; 120(4):1192–1203 doi:10.1172/JCI40310
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

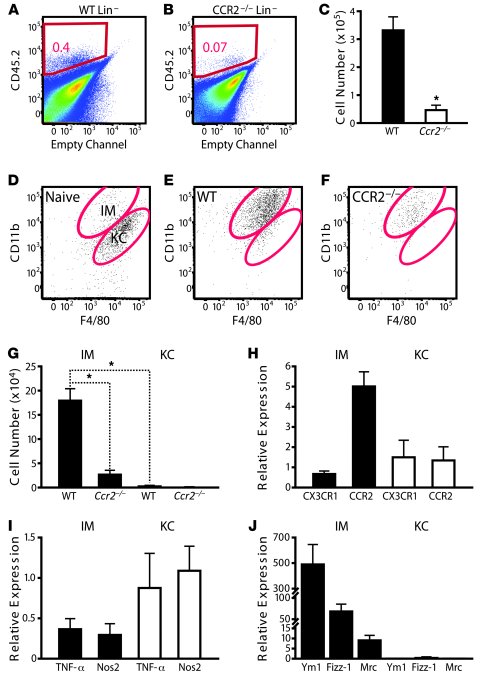

Figure 8
CCR2+Lin BM cells differentiate into M2 macrophages in APAP-injured liver.

(AC) Identification of donor-derived CD45.2 cells in APAP-treated liver. At 48 hours after transfer of CD45.2+ WT or Ccr2–/– Lin BM cells into APAP-treated CD45.1 mice, liver nonhepatocytes were isolated and stained for CD45.2 (A and B). Representative FACS plots are shown. (C) Number of donor-derived CD45.2+ cells per 1 million of nonhepatocytes are shown. Values are mean ± SD. *P < 0.01 vs. WT. (DG) Donor Lin BM cells differentiate primarily into IMs. (D) Two macrophage populations in the liver of mice 48 hours after APAP challenge. Nonhepatocytes were isolated and stained with anti-CD45.2, anti-CD11b, and anti-F4/80. CD45.2+ cells were gated and evaluated for the expression of F4/80 and CD11b to separate IMs from KCs. (E) IMs and KCs from mice who received WT CD45.2+Lin cells. (F) IMs and KCs from mice who received Ccr2–/– CD45.2+Lin cells. (G) Quantification of FACS plots. Values are mean ± SD per 1 million nonhepatocytes. *P < 0.05 versus IM cells derived from WT Lin BM cells. (HJ) Hepatic IMs and KCs from mice 48 hours after APAP challenge were purified by FACS. RNA was extracted, and mRNA levels were determined by qRT-PCR, including (H) chemokine receptors CCR2 and CX3CR1 and genes associated with classical (M1) macrophage activation (I) or M2 macrophage activation (J). Values are mean ± SD.
