Yue Si, Chia-Lin Tsou, Kelsey Croft, Israel F. Charo
Published in Volume 120, Issue 4
J Clin Invest. 2010; 120(4):1192–1203 doi:10.1172/JCI40310
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

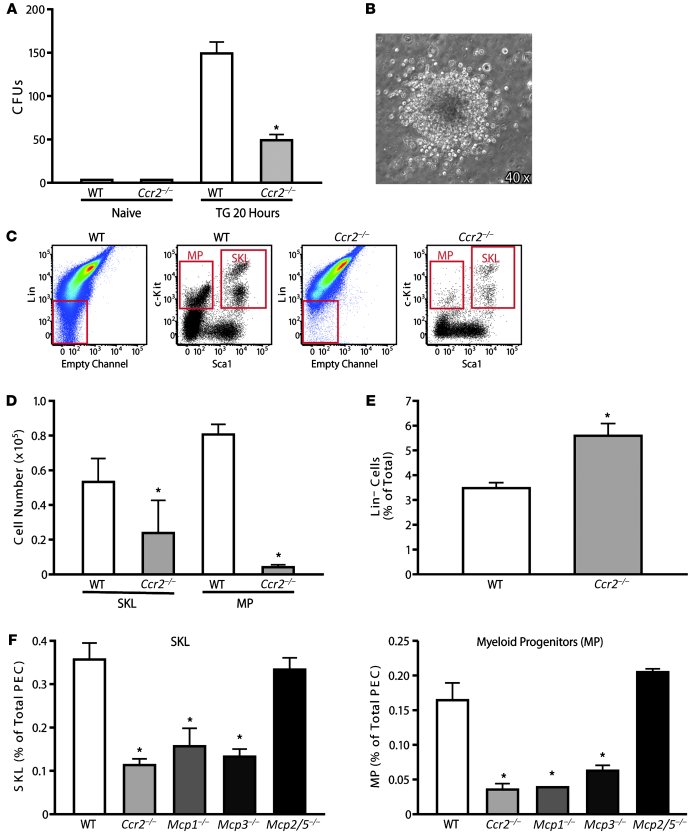

Figure 3
CCR2 mediates the recruitment of HSCs/HPCs to the peritoneum.

(A) Thioglycollate (TG) was injected into the peritoneum of WT and Ccr2–/– mice, and HSCs/HPCs recruited after 20 hours were quantified as CFUs. Values are mean ± SD. *P < 0.01 versus WT. n = 8 per genotype. (B) Micrograph of typical CFU-GM recovered from the peritoneum of WT mice. (C) Representative FACS plots of peritoneal leukocytes from WT and Ccr2–/– mice. MPs were defined as LinSca1c-Kit+, and enriched HSC populations (SKL) were defined by the markers of LinSca1+c-Kit+. (D) Quantification of the FACS data. Values are mean ± SD. n = 8 per genotype. *P < 0.05. (E) Quantification of Lin cells in blood in WT and Ccr2–/– mice after thioglycollate injection. Values are mean ± SD. n = 8 mice per genotype. *P < 0.05. (F) The number of SKLs (LinSca1+c-Kit+) and MPs (LinSca1c-Kit+) recruited to the peritoneum 20 hours after injection of thioglycollate was quantified by FACS. Values are mean ± SD. *P < 0.01 versus WT. WT, n = 5; Mcp1–/–, n = 5; Mcp3–/–, n = 5; Mcp2–/–Mcp5–/–, n = 5.
