Hiroyuki Nakayama, Ilona Bodi, Robert N. Correll, Xiongwen Chen, John Lorenz, Steven R. Houser, Jeffrey Robbins, Arnold Schwartz, Jeffery D. Molkentin
Published in Volume 119, Issue 12
J Clin Invest. 2009; 119(12):3787–3796 doi:10.1172/JCI39724
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

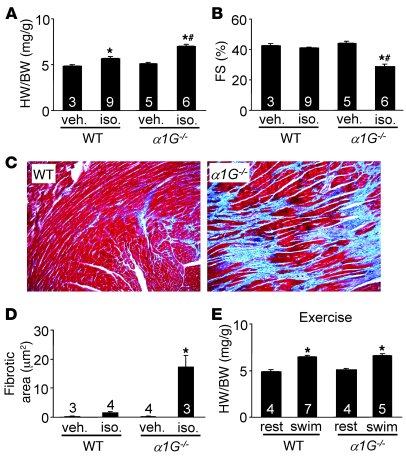

Figure 4
α1G deletion exacerbates cardiac pathology after isoproterenol infusion.

(A) HW/BW in α1G–/– or α1G+/+ (WT) mice infused with isoproterenol (iso.) at 60 mg/kg/d or PBS for 14 days. (B) Fractional shortening (FS) assessment by echocardiography from mice as in A. (C) Representative histological assessment (original magnification, ×100) of pathology from mice as in A. (D) Quantitation of fibrotic area (blue) from Masson’s trichrome–stained cardiac histological sections obtained from mice as in A. (E) HW/BW after 3 weeks of swimming exercise in the indicated groups of mice. The number of mice analyzed in each group is shown within the bars. *P < 0.05 versus WT veh./rest; #P < 0.05 versus WT iso.
