Pranavkumar Shivakumar, Gregg E. Sabla, Peter Whitington, Claire A. Chougnet, Jorge A. Bezerra
Published in Volume 119, Issue 8
J Clin Invest. 2009; 119(8):2281–2290 doi:10.1172/JCI38879
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

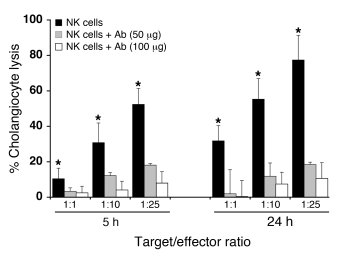

Figure 9
Block of cholangiocyte lysis by anti-Nkg2d antibodies.

Mean (±SD) percentage of 51Cr release by the murine cholangiocyte line mCL after 5 and 24 hours of coculture with hepatic NK cells purified 7 days after injection of RRV into 1-day-old mice. Hepatic NK cells were added directly to the culture or preincubated with 50 or 100 μg of blocking anti-Nkg2d antibodies before being added to the culture. The horizontal axis shows mCL (target) to NK (effector) cell ratios. n = 3 wells per group; results are representative of 2 independent experiments, with hepatic NK cells obtained from pools of 15–20 livers (*P < 0.01).
