Stephan Wueest, Reto A. Rapold, Desiree M. Schumann, Julia M. Rytka, Anita Schildknecht, Ori Nov, Alexander V. Chervonsky, Assaf Rudich, Eugen J. Schoenle, Marc Y. Donath, Daniel Konrad
Published in Volume 120, Issue 1
J Clin Invest. 2010; 120(1):191–202 doi:10.1172/JCI38388
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

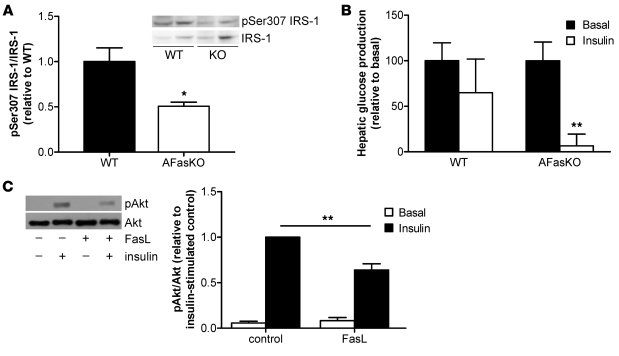

Figure 9
Improved hepatic insulin sensitivity in AFasKO mice.

(A) Lysates were immunoblotted with anti–phospho-IRS1 (Ser307) and total IRS1 antibody. Expression levels of pSer307 are normalized to expression of total IRS1. Results are mean ± SEM of 4 mice and expressed relative to WT. *P < 0.05 (Student’s t test). (B) Hepatic glucose production was calculated in the basal period and in response to insulin infusion during the hyperinsulinemic-euglycemic clamp study. Results are mean ± SEM of 3–4 animals per group and expressed relative to basal hepatic glucose production. **P < 0.01 (Student’s t test). (C) 3T3-L1 adipocytes were incubated with or without FasL for 12 hours, and subsequently, supernatant was collected for 24 hours. Hepatoma cells (Fao) were incubated with the conditioned medium for 24 hours. Total cell lysates were prepared and resolved by LDS-PAGE and immunoblotted with anti–phospho-Akt or Akt antibody. Results are mean ± SEM of 7–9 independent experiments. **P < 0.01 (ANOVA).
