Naina Patel, Shekhar Krishnan, Marc N. Offman, Marcin Krol, Catherine X. Moss, Carly Leighton, Frederik W. van Delft, Mark Holland, JiZhong Liu, Seema Alexander, Clare Dempsey, Hany Ariffin, Monika Essink, Tim O.B. Eden, Colin Watts, Paul A. Bates, Vaskar Saha
Published in Volume 119, Issue 7
J Clin Invest. 2009; 119(7):1964–1973 doi:10.1172/JCI37977
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

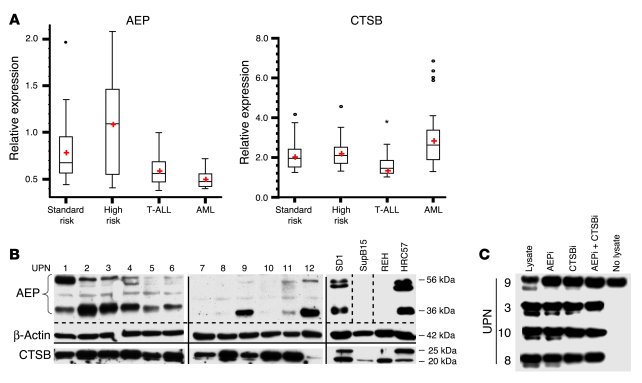

Figure 2
AEP is relatively overexpressed in cytogenetic high-risk subsets of pre-B ALL, while CTSB expression is relatively uniform across ALL subtypes (A) Box-plot representations of relative AEP and CTSB microarray expression in leukemic blasts.

Categories of acute leukemia are shown on the x axis. High risk (n = 24) refers to pre-B ALL subtypes with high-risk cytogenetic features, including BCR-ABL1, MLL rearrangements, iAMP21, and hypodiploidy. The other categories include standard risk pre-B ALL (n = 59), T cell–lineage ALL (n = 11), and AML (n = 26). The y axis represents the relative gene expression level of either AEP or CTSB. Box plots for each category of ALL represent the interquartile range of values, the whiskers represent the smallest and largest values for each category, and the horizontal lines and plus symbols denote the median and mean respectively; outlier values are represented by circles and asterisks. (B) Primary lymphoblasts express CTSB and AEP. Immunoblots of primary ALL samples (UPN, unique patient number) and cell lines. Precursor (56 kDa) and active (36 kDa) forms of AEP are detected. The 20 and 25 kDa bands in the CTSB blot represent the heavy chains of mature CTSB dimers; β-actin was the loading control. Lines demarcate different gels; dashed lines denote spliced noncontiguous lanes within gels. (C) Lysates of primary blast cells cleave ASNase. Cleavage is inhibited by CTSBi in patients 8 and 10 and by a combination of CTSBi and AEPi in patients 3 and 9. A no-lysate control is shown for patient 9 only.
