Qi Shen, Shawn C. Little, Meiqi Xu, Julia Haupt, Cindy Ast, Takenobu Katagiri, Stefan Mundlos, Petra Seemann, Frederick S. Kaplan, Mary C. Mullins, Eileen M. Shore
Published in Volume 119, Issue 11
J Clin Invest. 2009; 119(11):3462–3472 doi:10.1172/JCI37412
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

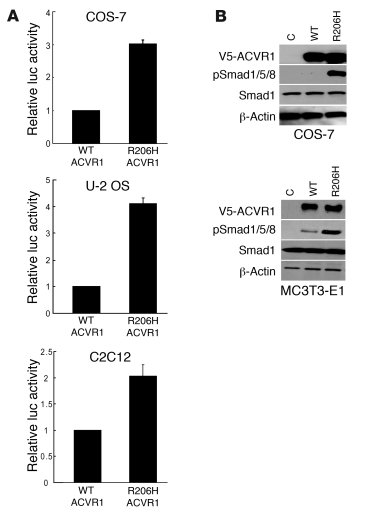

Figure 1
Mutant ACVR1 (c617A; R206H) activates the BMP signaling pathway.

(A) Activation of ID1 transcription. COS-7 cells were cotransfected with an ID1 promoter luciferase reporter construct (–985/+94) and either human wild-type ACVR1 or mutant ACVR1 (R206H) expression vectors. Similar assays used U-2 OS and C2C12 cells. Data represent mean ± SEM (n > 3). (B) Induction of Smad1/5/8 phosphorylation. COS-7 (top) or MC3T3-E1 cells (bottom) were transfected with V5-tagged wild-type ACVR1 or c617A mutant ACVR1 (R206H) constructs or with the empty vector control (C). Immunoblot analysis for phosphorylated Smad1/5/8 showed induction of Smad1/5/8 phosphorylation without BMP treatment in cells expressing the mutant but not wild-type ACVR1 or empty vector constructs. Total Smad1 protein is shown. V5 antibody was used to detect the expression of the V5-tagged ACVR1 proteins. β-Actin was detected as a loading control. Data are representative of 3 individual experiments.
