Hyunsoo Kim, Han Kyoung Choi, Ji Hye Shin, Kyung Hee Kim, Ji Young Huh, Seung Ah Lee, Chang-Yong Ko, Han-Sung Kim, Hong-In Shin, Hwa Jeong Lee, Daewon Jeong, Nacksung Kim, Yongwon Choi, Soo Young Lee
Published in Volume 119, Issue 4
J Clin Invest. 2009; 119(4):813–825 doi:10.1172/JCI36809
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

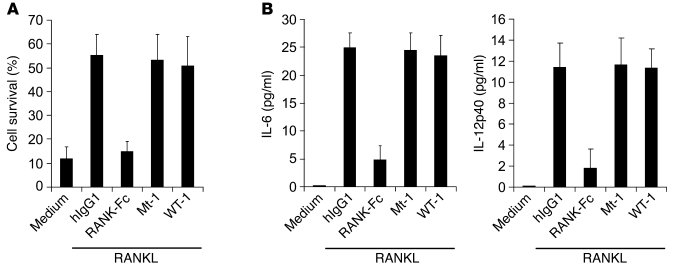

Figure 9
Differential effects of RANK-Fc and RRI peptides on DC survival or cytokine production.

(A) BM-derived DCs (BMDCs) were cultured with combinations of granulocyte–M-CSF (10 ng/ml), RANKL (500 ng/ml), hIgG1 (10 μg/ml), RANK-Fc (5 μg/ml), and Mt or WT peptides (5 μM) for 72 hours. Cell viability was measured by propidium iodide staining. (B) Analysis of IL-6 or IL-12p40 production. BMDCs were left untreated or stimulated as indicated for 12 hours. Culture supernatants were collected, and IL-6 or IL-12p40 production was analyzed by ELISA. Data represent mean ± SD and are representative of at least 3 experiments (A and B).
