Stefan Bröer, Charles G. Bailey, Sonja Kowalczuk, Cynthia Ng, Jessica M. Vanslambrouck, Helen Rodgers, Christiane Auray-Blais, Juleen A. Cavanaugh, Angelika Bröer, John E.J. Rasko
Published in Volume 118, Issue 12
J Clin Invest. 2008; 118(12):3881–3892 doi:10.1172/JCI36625
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

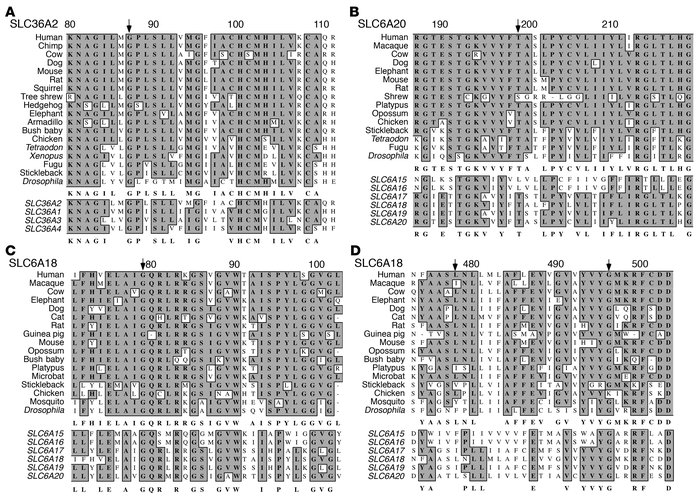

Figure 2
Mutations identified in IG and HG candidate genes SLC36A2, SLC6A20, and SLC6A18 encode highly conserved amino acid residues in transmembrane regions.

Multiple amino acid sequence alignments were performed using ClustalW. Human RefSeq protein SLC36A2 (NP_861441.1) was aligned with SLC36A1 (NP_510968.2), SLC36A3 (NP_861439.2), and SLC36A4 (NP_689526.2). SLC6A20 (NP_064593.1) and SLC6A18 (NP_872438.1) were aligned with members of the SLC6 amino acid transporter (II) family (39): SLC6A15 (NP_877499.1); SLC6A16 (NP_054756.2); SLC6A17 (NP_001010898.1); and SLC6A19 (NP_001003841.1). Orthologs from other species were sourced from Ensembl release 47. Gray shading indicates residues that are conserved in the majority of sequences. Mutations identified in this study are indicated with arrows: (A) SLC36A2 G87V; mutation is in the second transmembrane helix; (B) SLC6A20 T199M; mutation is in the fifth transmembrane helix; (C) SLC6A18 G79S; mutation is in the second transmembrane helix; and (D) SLC6A18 L478P and G496R, both located in the tenth transmembrane helix.
