Virna Cortez-Retamozo, Filip K. Swirski, Peter Waterman, Hushan Yuan, Jose Luiz Figueiredo, Andita P. Newton, Rabi Upadhyay, Claudio Vinegoni, Rainer Kohler, Joseph Blois, Adam Smith, Matthias Nahrendorf, Lee Josephson, Ralph Weissleder, Mikael J. Pittet
Published in Volume 118, Issue 12
J Clin Invest. 2008; 118(12):4058–4066 doi:10.1172/JCI36335
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

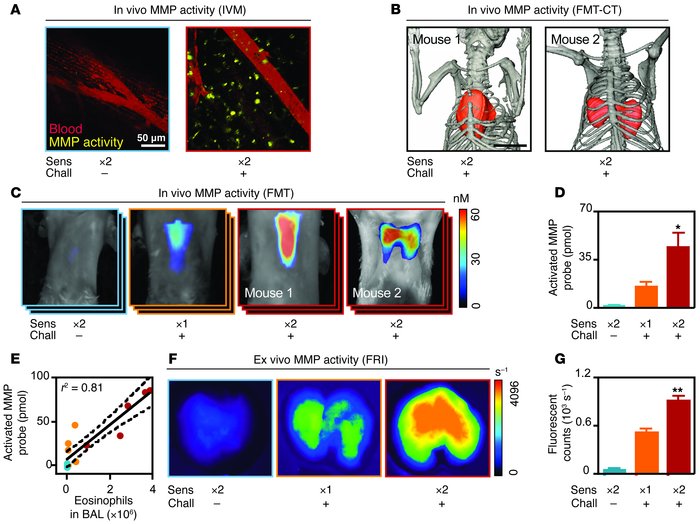

Figure 2
In vivo detection of eosinophil-mediated MMP activity correlates with disease severity.

Sens, sensitization (×1, once; ×2, twice); Chall, challenge with OVA. (A) IVM showed single-cell MMP activity in inflamed versus control lungs. (B) Virtual 3-dimensional rendering of MMP activity in inflamed lungs of 2 different mice and acquired by FMT-CT. MMP activity localized centrally to the lower trachea and major bronchi in mouse 1, and to the right and left lobes of the lung in mouse 2. (C and D) FMT measurement of MMP activity in whole lungs of mice with no (unchallenged; blue), moderate (sensitized once with OVA/alum; orange), or potent (sensitized twice with OVA/alum; red) airway inflammation. Mice 1 and 2 from B are shown. (E) MMP activity in vivo positively correlated with the number of eosinophils in BAL fluids. (F and G) FRI of excised lungs confirmed the FMT results. At least 3 independent experiments were performed, with n = 3–5 per experiment and per group. Data are mean ± SEM. *P < 0.05, **P < 0.01 versus once-sensitized group. Scale bars: 50 μm (A); 1 cm (B).
