Takeshi Kanda, Jonathan D. Brown, Gabriela Orasanu, Silke Vogel, Frank J. Gonzalez, Juliano Sartoretto, Thomas Michel, Jorge Plutzky
Published in Volume 119, Issue 1
J Clin Invest. 2009; 119(1):110–124 doi:10.1172/JCI36233
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

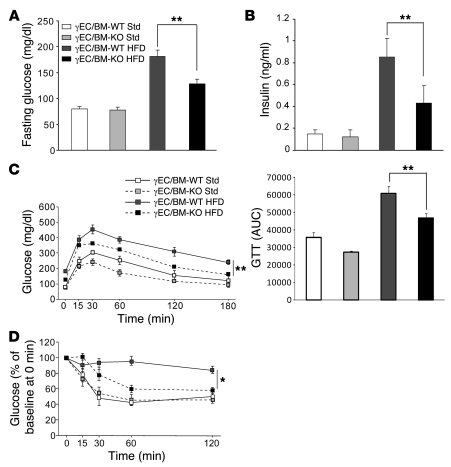

Figure 3
Tie2Cre-mediated PPARγ deletion improves glucose control and insulin sensitivity in response to high-fat diet.

(A) Fasting glucose and (B) insulin levels and (C) glucose tolerance and (D) insulin tolerance testing in γEC/BM-KO and γEC/BM-WT mice after standard chow or high-fat diet (n = 5–6). (C) The AUC of glucose levels during glucose tolerance tests is shown. *P < 0.05, **P < 0.01 versus obese γEC/BM-WT mice. GTT, glucose tolerance test.
