Marc Tjwa, Nicolai Sidenius, Rute Moura, Sandra Jansen, Koen Theunissen, Annapaola Andolfo, Maria De Mol, Mieke Dewerchin, Lieve Moons, Francesco Blasi, Catherine Verfaillie, Peter Carmeliet
Published in Volume 119, Issue 4
J Clin Invest. 2009; 119(4):1008–1018 doi:10.1172/JCI36010
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

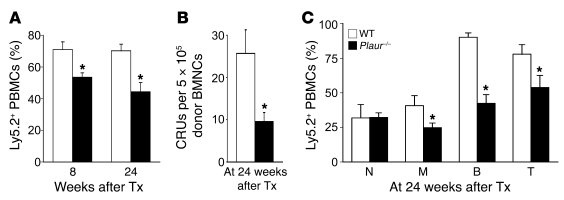

Figure 6
Loss of uPAR impairs long-term engraftment and multilineage repopulation.

(AC) Serial transplantation assay showed a significantly reduced contribution of Plaur–/– Ly5.2+ donor cells to the hematopoietic system in secondary Ly5.1+ recipients. (A) Percentage of Ly5.2+ PBMCs in secondary Ly5.1+ recipient mice at 8 and 24 weeks after transplantation (Tx). (B) Number of CRUs per 5 × 105 BMMCs in secondary Ly5.1+ recipient mice at 24 weeks after transplantation. (C) Multilineage repopulation in secondary Ly5.1+ recipient mice at 24 weeks after transplantation, revealing the percentage of GFP+ neutrophils (Gr1CD11bhi; N), monocytes (Gr1CD11blo; M), B lymphocytes (B220+; B) and T lymphocytes (CD3e+; T). *P < 0.05 versus WT donor cells (n = 6–9).
