Lihua Bao, Mark Haas, Jeffrey Pippin, Ying Wang, Takashi Miwa, Anthony Chang, Andrew W. Minto, Miglena Petkova, Guilin Qiao, Wen-Chao Song, Charles E. Alpers, Jian Zhang, Stuart J. Shankland, Richard J. Quigg
Published in Volume 119, Issue 5
J Clin Invest. 2009; 119(5):1264–1274 doi:10.1172/JCI36000
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

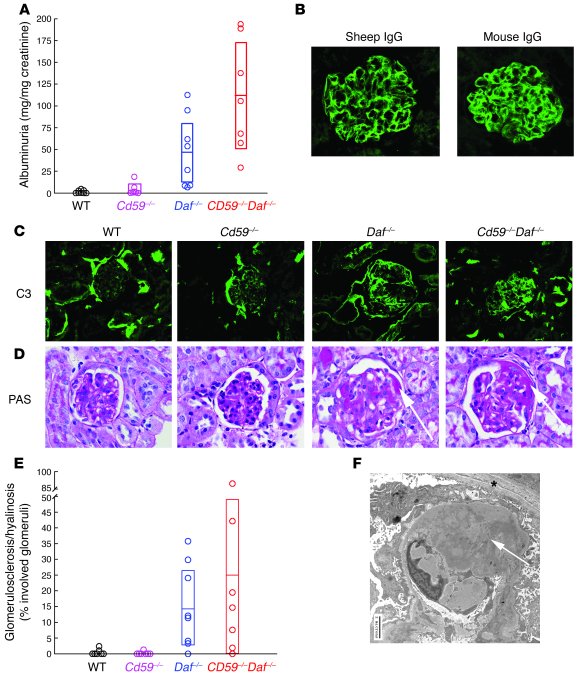

Figure 1
Anti-podo Ab–induced FSGS in DAF-deficient animals.

(A) Significant albuminuria occurred in Daf–/– and Cd59–/–Daf–/– mice 30 days after administration of anti-podo Abs. (BD) Representative photomicrographs 30 days after anti-podo injection show glomerular localization of sheep and mouse IgG (B) and mouse C3 (C) in the 4 groups; (D) PAS-stained kidney sections show segmental sclerosis (arrows) only in Daf–/– and Cd59–/–Daf–/– mice. (E) The extent of glomerulosclerosis in individual mice 30 days after administration of anti-podo Abs is shown. (F) Extensive podocyte foot process effacement and prominent remodeling of the external surface of the glomerular basement membrane (arrow) was seen by electron microscopy in DAF-deficient mice 30 days after anti-podo Abs administration. Asterisk denotes Bowman capsule. Numeric data shown in A and E from Daf–/– and Daf–/–Cd59–/– mice were normally distributed, with means and 95% CIs shown as horizontal lines and open boxes, respectively. Data from WT and Cd59–/– mice were nonparametric (Anderson-Darling test; P < 0.05); when sufficiently different from the origin, the 95% CI for the median is shown as an open box. Original magnification, ×400 (BD); ×7,100 (F).
