Stefania Corti, Monica Nizzardo, Martina Nardini, Chiara Donadoni, Sabrina Salani, Dario Ronchi, Francesca Saladino, Andreina Bordoni, Francesco Fortunato, Roberto Del Bo, Dimitra Papadimitriou, Federica Locatelli, Giorgia Menozzi, Sandra Strazzer, Nereo Bresolin, Giacomo P. Comi
Published in Volume 118, Issue 10
J Clin Invest. 2008; 118(10):3316–3330 doi:10.1172/JCI35432
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

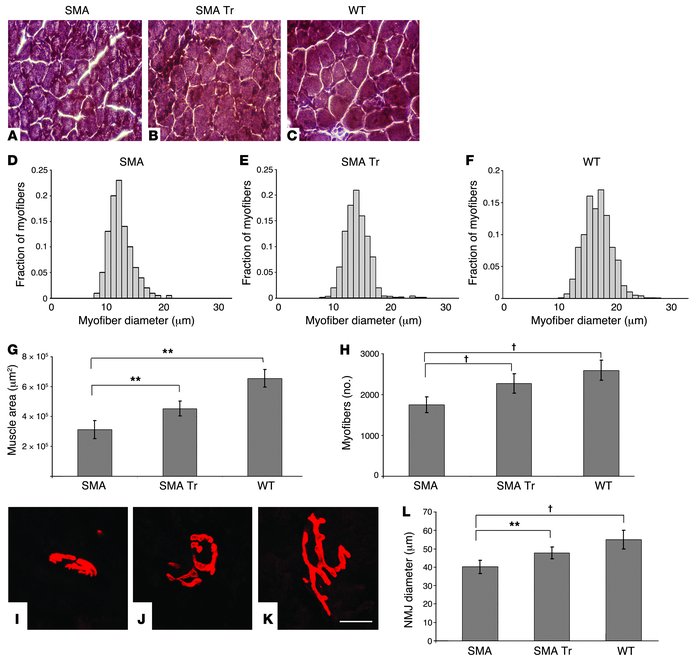

Figure 6
NSC transplantation ameliorates muscle innervation in SMA mice.

SMA mice were treated with vehicle (n = 6) or NSCs (n = 6), and WT littermates were treated with vehicle (n = 6) on days P1. (AC) H&E-stained cross sections of TA muscle. (DF) Histograms of myofiber diameters. (G) Mean TA muscle cross-sectional area was reduced in SMA mice compared with WT littermates and increased after NSC transplantation (**P < 0.00001). Data represent mean values ± SD. (H) Mean TA muscle total myofiber number was reduced in SMA mice compared with WT littermates and increased after NSC treatment (P < 0.00001). (IK) Immunofluorescence analysis of NMJs was performed within the gastrocnemii of SMA mice treated with NSCs (I) or vehicle (J) or of WT littermates (P13) (K). α-Bungarotoxin was used to label AChR (red). (L) Histogram showing the mean NMJ diameter in treated and untreated SMA and wild-type gastrocnemii at P13, demonstrating an increased size in treated mice (**P < 0.00001, treated versus untreated SMA; P < 0.00001, SMA versus WT). Scale bar: 300 μm (AC); 10 μm (IK).
