Yosuke Kawasaki, Fumitaka Kugimiya, Hirotaka Chikuda, Satoru Kamekura, Toshiyuki Ikeda, Naohiro Kawamura, Taku Saito, Yusuke Shinoda, Akiro Higashikawa, Fumiko Yano, Toru Ogasawara, Naoshi Ogata, Kazuto Hoshi, Franz Hofmann, James R. Woodgett, Kozo Nakamura, Ung-il Chung, Hiroshi Kawaguchi
Published in Volume 118, Issue 7
J Clin Invest. 2008; 118(7):2506–2515 doi:10.1172/JCI35243
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

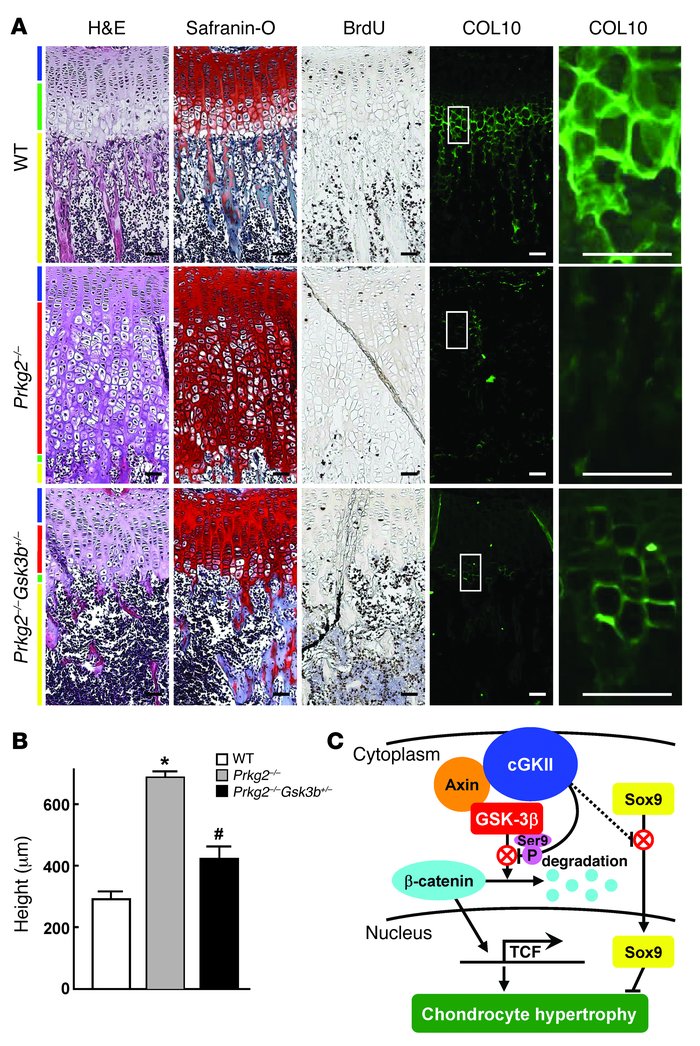

Figure 7
Genetic rescue of growth plate abnormality in Prkg2–/– mice by GSK-3β insufficiency.

(A) H&E staining, Safranin-O staining, BrdU labeling, and immunohistochemical staining of COL10 in the tibial growth plates of 3-week-old mice of the 3 genotypes. Blue, red, green, and yellow bars indicate proliferative zone, abnormal intermediate layer, hypertrophic zone, and primary spongiosa, respectively. Boxed regions in COL10 panels are shown at higher magnification to the right. Scale bars: 50 μm. (B) Height of the growth plates of the 3 genotypes. The percentage recovery by the GSK-3β insufficiency was 36.0%. Data are mean ± SD of 4 mice per genotype. *P < 0.05 versus WT. #P < 0.05 versus Prkg2–/–. (C) Schematic of the mechanism whereby cGKII promotes growth plate chondrocyte hypertrophy during skeletal growth.
