Yosuke Kawasaki, Fumitaka Kugimiya, Hirotaka Chikuda, Satoru Kamekura, Toshiyuki Ikeda, Naohiro Kawamura, Taku Saito, Yusuke Shinoda, Akiro Higashikawa, Fumiko Yano, Toru Ogasawara, Naoshi Ogata, Kazuto Hoshi, Franz Hofmann, James R. Woodgett, Kozo Nakamura, Ung-il Chung, Hiroshi Kawaguchi
Published in Volume 118, Issue 7
J Clin Invest. 2008; 118(7):2506–2515 doi:10.1172/JCI35243
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

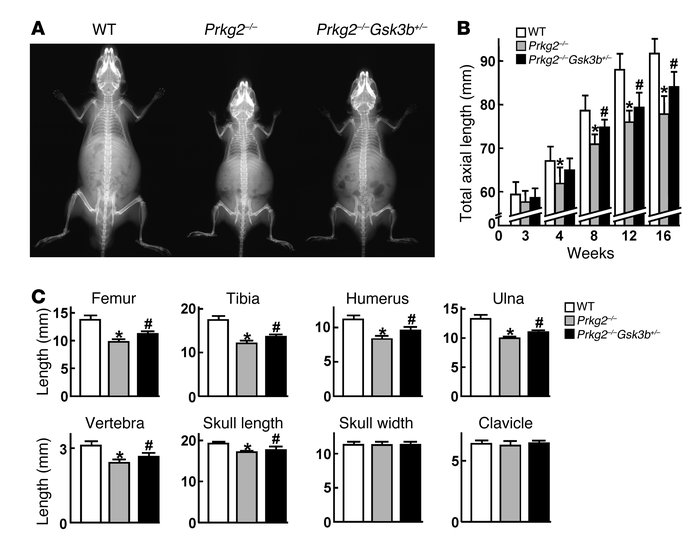

Figure 6
Genetic rescue of growth retardation in Prkg2–/– mice by GSK-3β insufficiency.

(A) Radiographs of WT, Prkg2–/–, and Prkg2–/–Gsk3b+/– littermates at 8 weeks of age. (B) Time course of total axial length (from nose to tail end) of the 3 genotypes from 3 to 16 weeks of age. The recovery by the GSK-3β insufficiency in the Prkg2–/– mice was 43.2%, 31.4%, and 41.9% at 8, 12, and 16 weeks, respectively. (C) Length of bones of the 3 genotypes at 8 weeks of age. Percent recovery was 21.7%, 18.3%, 24.3%, 16.2%, 24.3%, and 42.6% in femur, tibia, humerus, ulna, vertebra, and skull length, respectively. Data are mean ± SD for 4–9 mice per genotype. *P < 0.05 versus WT. #P < 0.05 versus Prkg2–/–.
