Seung-Ok Lee, Tatyana Masyuk, Patrick Splinter, Jesús M. Banales, Anatoliy Masyuk, Angela Stroope, Nicholas LaRusso
Published in Volume 118, Issue 11
J Clin Invest. 2008; 118(11):3714–3724 doi:10.1172/JCI34922
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

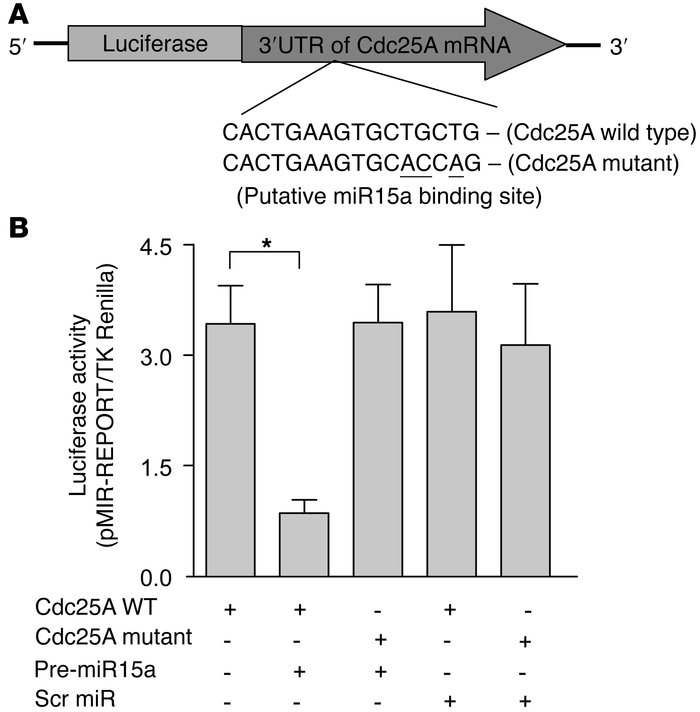

Figure 7
Targeting of miR15a to the 3′-UTR region of Cdc25A mRNA.

(A) 2 reporter constructs (Cdc25A WT and Cdc25A mutant) with the potential binding site for miR15a in the 3′-UTR region of Cdc25A were generated. (B) In PCK-CCL cotransfected with the Cdc25A WT construct and miR15a precursor (pre-miR15a), luciferase reporter translation was significantly decreased compared with that in PCK-CCL transfected with the Cdc25A WT construct only. A mutation in the miR15a–binding sequence in the Cdc25A mRNA 3′-UTR eliminated this effect. Moreover, in the presence of scrambled miRNA (scr miR), no changes in luciferase reporter were observed. Data are representative of 7 independent experiments. *P < 0.05.
