Xin-Ming Shen, Taku Fukuda, Kinji Ohno, Steven M. Sine, Andrew G. Engel
Published in Volume 118, Issue 5
J Clin Invest. 2008; 118(5):1867–1876 doi:10.1172/JCI34527
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

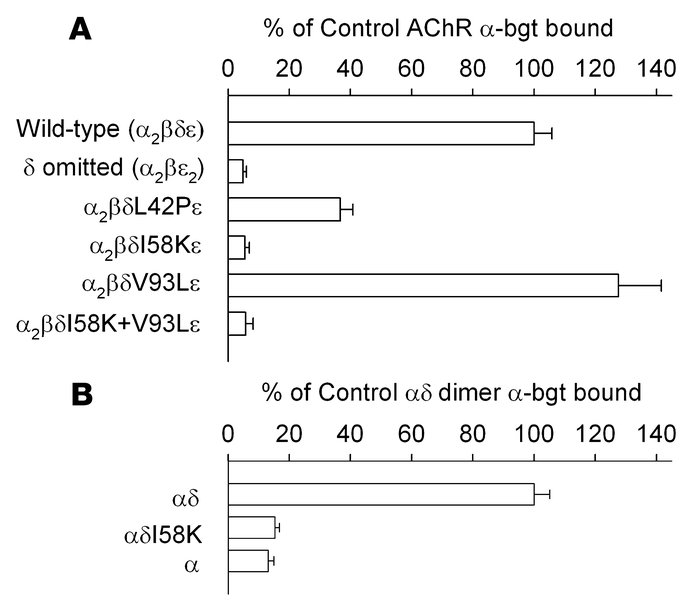

Figure 5
α-bgt binding studies.

(A) [125I]α-bgt binding to surface receptors on intact HEK cells transfected with the indicated AChR subunits. The results were normalized to results from α-bgt binding to wild-type AChR (α2βδε) and represent mean ± SD of 3–6 experiments. (B) Total α-bgt binding to saponin-permeabilized cells transfected with the indicated subunit cDNAs. Amounts of bound [125I]α-bgt were normalized to that measured for the wild-type dimer (αδ).
