Yvonne G. Weber, Alexander Storch, Thomas V. Wuttke, Knut Brockmann, Judith Kempfle, Snezana Maljevic, Lucia Margari, Christoph Kamm, Susanne A. Schneider, Stephan M. Huber, Arnulf Pekrun, Robert Roebling, Guiscard Seebohm, Saisudha Koka, Camelia Lang, Eduard Kraft, Dragica Blazevic, Alberto Salvo-Vargas, Michael Fauler, Felix M. Mottaghy, Alexander Münchau, Mark J. Edwards, Anna Presicci, Francesco Margari, Thomas Gasser, Florian Lang, Kailash P. Bhatia, Frank Lehmann-Horn, Holger Lerche
Published in Volume 118, Issue 6
J Clin Invest. 2008; 118(6):2157–2168 doi:10.1172/JCI34438
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

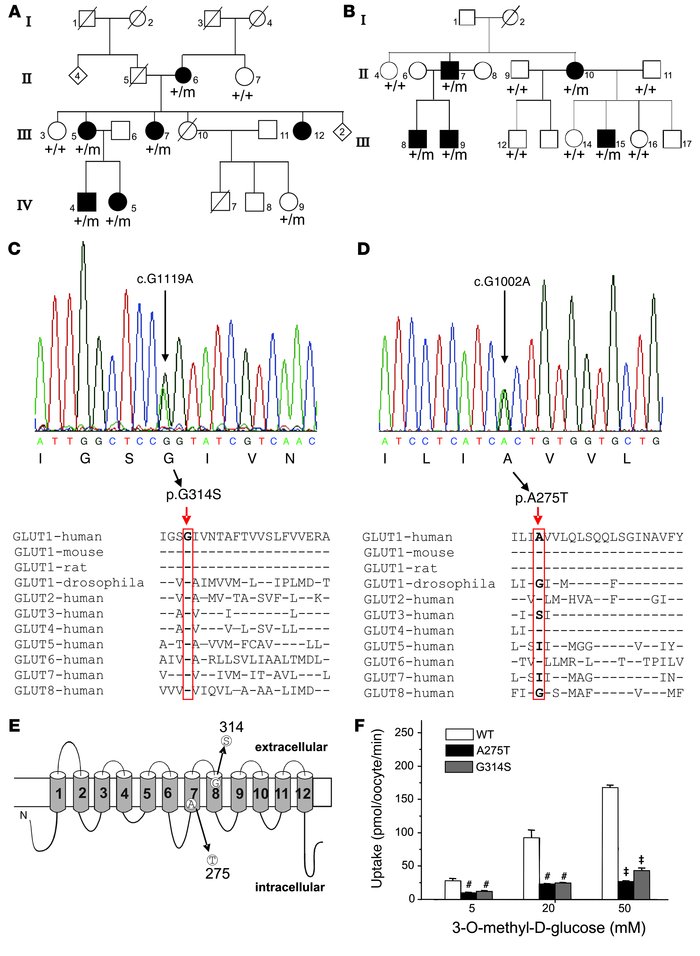

Figure 5
Genetic and functional analysis of further families with PED.

(A) Partial pedigree of family PED2 (see ref. 24 for full pedigree). Individuals affected by PED, epilepsy, mild mental retardation, and impulsivity are shown as filled symbols, and open symbols represent unaffected individuals. Symbols with diagonal lines represent deceased individuals. (B) Pedigree of family PED4 (modified after ref. 26; see text). Filled symbols denote individuals affected by PED. +/+ denotes 2 WT alleles, whereas +/m denotes heterozygous mutation carriers. (C and D) DNA sequences shown for patients III-5 from family PED2 and II-7 from PED4 reveal point mutations c.G1119A (C) and c.G1002A (D), predicting the substitutions p.G314S and p.A275T, respectively. Lower panels show G314 is highly, while A275 is a bit less, conserved among species and other glucose transporters. (E) Localization of the 2 novel mutations in transmembrane domains 7 and 8 of GLUT1. (F) Glucose uptake in oocytes was reduced for both mutations (shown are representative results recorded from 1 batch of 3 × 10 oocytes for each glucose concentration, mean ± SEM; #P < 0.01, P < 0.001).
