Stefan Pfister, Wibke G. Janzarik, Marc Remke, Aurélie Ernst, Wiebke Werft, Natalia Becker, Grischa Toedt, Andrea Wittmann, Christian Kratz, Heike Olbrich, Rezvan Ahmadi, Barbara Thieme, Stefan Joos, Bernhard Radlwimmer, Andreas Kulozik, Torsten Pietsch, Christel Herold-Mende, Astrid Gnekow, Guido Reifenberger, Andrey Korshunov, Wolfram Scheurlen, Heymut Omran, Peter Lichter
Published in Volume 118, Issue 5
J Clin Invest. 2008; 118(5):1739–1749 doi:10.1172/JCI33656
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

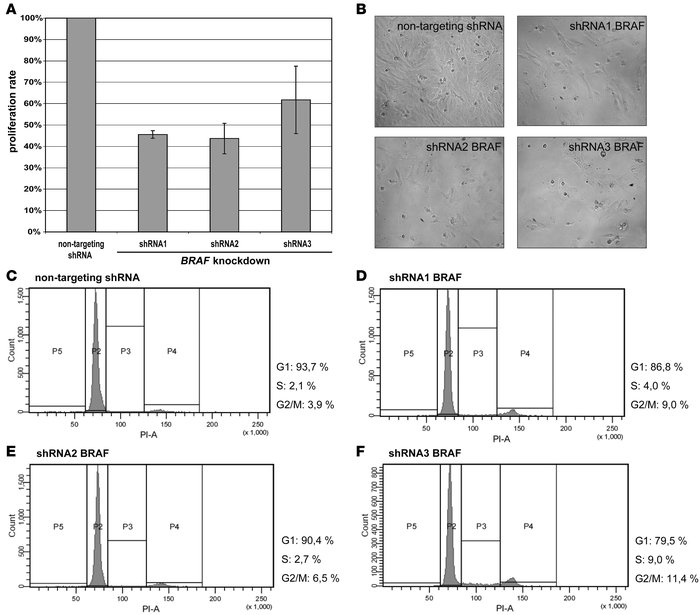

Figure 5
Stable silencing of BRAF expression in pilocytic astrocytoma cells.

(A) Proliferation of NCH492 pilocytic astrocytoma cells after shRNA-mediated silencing of BRAF using 3 different shRNAs as assessed by MTT assay 24 hours after plating equal numbers of cells. Nontargeting shRNA was used as a reference. Severe growth inhibition was observed for all 3 shRNAs targeting BRAF. Error bars represent the SD between replicates. (B) Microscopic examination of the same samples at the time of MTT analysis showing growth arrest of cells upon BRAF knockdown. Original magnification, ×10. (CF) Cell-cycle analysis 24 hours after plating equal numbers of cells either carrying nontargeting shRNA (C) or one of the shRNAs targeting BRAF (DF). As observed for the treatment with MEK1/2 inhibitor, cells accumulated in the G2/M phase of the cell cycle.
