Shih-Wen Lin, Scott E. Hensley, Nia Tatsis, Marcio O. Lasaro, Hildegund C.J. Ertl
Published in Volume 117, Issue 12
J Clin Invest. 2007; 117(12):3958–3970 doi:10.1172/JCI33138
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

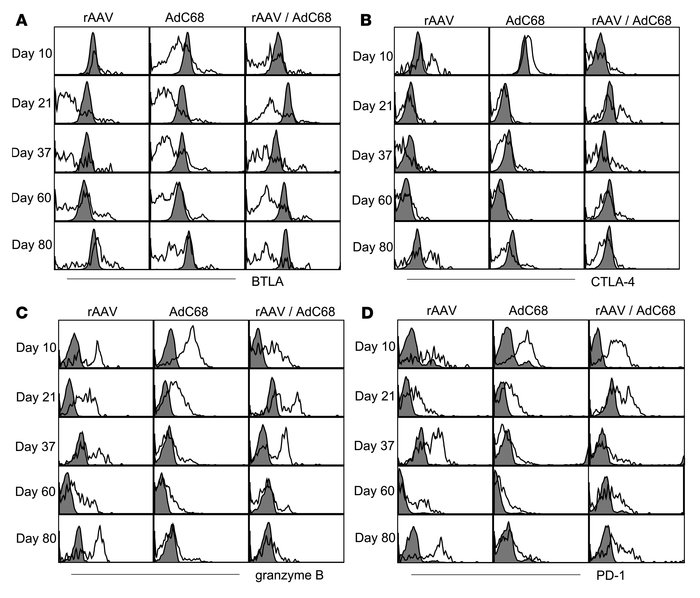

Figure 9
Transgene product–specific CD8+ T cells induced by rAAV immunization express markers indicative of exhaustion.

Groups of BALB/c mice were immunized with 1011 gc rAAV2/7gag or 1010 vp AdC68gag; a third group of mice was immunized with rAAV2/7gag and 1 month later boosted with AdC68gag. At days 10, 21, 37, 60, and 80 after the single immunization or after the booster immunization, splenocytes were stained with antibodies to BTLA (A), CTLA-4 (B), granzyme B (C), or PD-1 (D). Histograms show the expression of these markers on gag-tet+CD8+CD44+ cells (open) and gag-tetCD8+CD44 cells (filled). Differences in negative samples were caused by differences in machine settings.
