Jennifer W. Hill, Kevin W. Williams, Chianping Ye, Ji Luo, Nina Balthasar, Roberto Coppari, Michael A. Cowley, Lewis C. Cantley, Bradford B. Lowell, Joel K. Elmquist
Published in Volume 118, Issue 5
J Clin Invest. 2008; 118(5):1796–1805 doi:10.1172/JCI32964
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

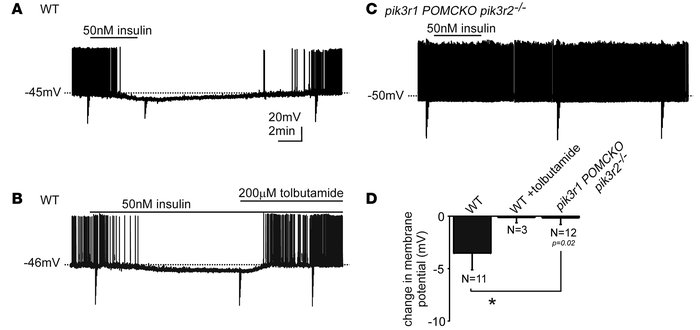

Figure 5
Insulin hyperpolarizes POMC neurons via a PI3K-dependent mechanism.

(A) Current-clamp record depicting the hyperpolarization of a POMC neuron from rest by 50 nM insulin. The hyperpolarization was reversible within 15 min of wash to control ACSF. Downward deflections are responses to rectangular current steps. (B) Current-clamp recording at resting membrane potential showing insulin-induced hyperpolarization (50 nM) followed by tolbutamide (200 μM) blockade of the insulin effect. (C) Sample trace illustrating the absence of insulin-induced hyperpolarization in POMC neurons from Pik3r1 POMCKO Pik3r2–/– mice. (D) Insulin-induced responses of identified POMC neurons from WT and Pik3r1 POMCKO Pik3r2–/– mice. P = 0.02, Pik3r1 POMCKO Pik3r2–/– versus WT.
