Tao Zuo, Runhua Liu, Huiming Zhang, Xing Chang, Yan Liu, Lizhong Wang, Pan Zheng, Yang Liu
Published in Volume 117, Issue 12
J Clin Invest. 2007; 117(12):3765–3773 doi:10.1172/JCI32538
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

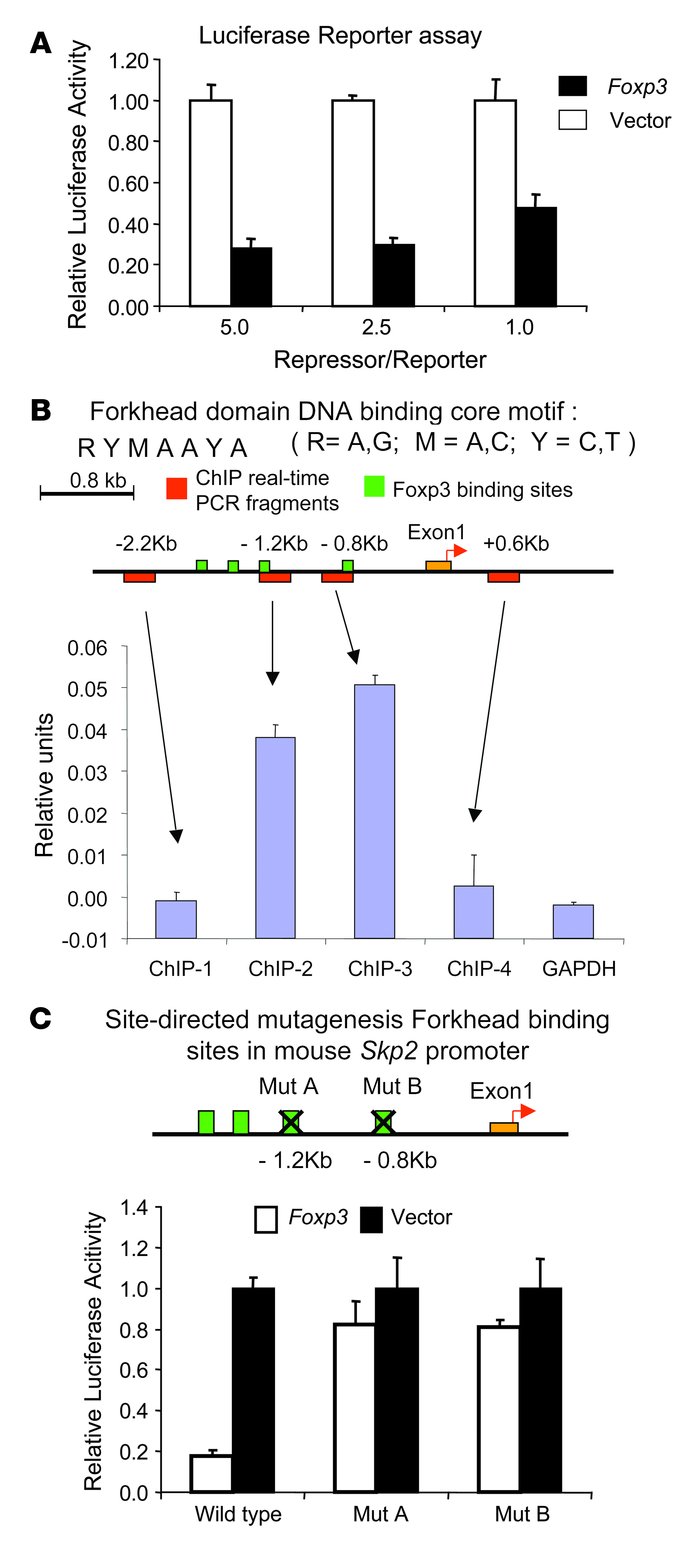

Figure 3
Foxp3 binding to Skp2 is important for transcriptional repression.

(A) Foxp3 represses mouse Skp2 promoter activity. Either Foxp3 cDNA or empty vector was transiently cotransfected with reporter vector at different ratios illustrated in the figure. Cells were transfected with either vector control or Foxp3 (1 μg/well) in conjunction with the luciferase reporter driven by 5′ promoter regions of the Skp2 gene (0.2 μg, 0.4 μg and 1.0 μg per well). Forty-eight hours later, the cell lysates were harvested and measured for luciferase activity. The luciferase activity from the cells transfected with the pGL2-basic vector was arbitrarily defined as 1.0. Data shown are means ± SD of triplicates and have been repeated at least 3 times. (B) The upper panel depicts the 5′ region of the Skp2 gene. The lower panel shows the amount of DNA precipitated by anti-V5 mAbs after subtracting a minute portion precipitated by IgG control. The data shown are a fraction of the total genomic DNA isolated from the same number of cells. (C) Deletion of 1 of the 2 Foxp3-binding sites in the Skp2 promoter region prevented FOXP3-mediated suppression. The deleted sequences are mut A: ACTAAACCAATATTCTAAT and mut B: TAAAAATAAACCATC. The promoter activity was measured in the human breast cancer line T47D.
