Wouter M. Tiel Groenestege, Stéphanie Thébault, Jenny van der Wijst, Dennis van den Berg, Rob Janssen, Sabine Tejpar, Lambertus P. van den Heuvel, Eric van Cutsem, Joost G. Hoenderop, Nine V. Knoers, René J. Bindels
Published in Volume 117, Issue 8
J Clin Invest. 2007; 117(8):2260–2267 doi:10.1172/JCI31680
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

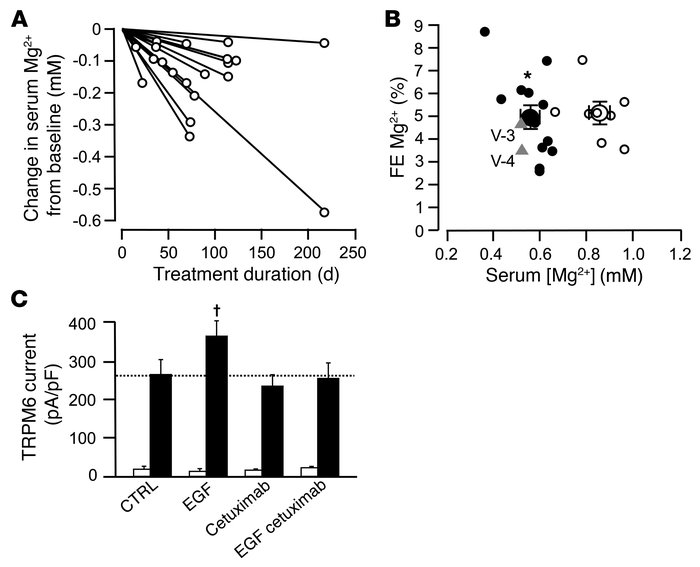

Figure 4
Effect of cetuximab treatment on Mg2+ balance and TRPM6 activity.

(A) Changes in serum Mg2+ levels from baseline over time during cetuximab therapy are shown for 20 colorectal cancer patients. Solid lines represent individual linear regression lines of the data points for each individual patient. Open symbols denote end of treatment. (B) Cetuximab treatment leads to renal Mg2+ loss and hypomagnesemia. Serum samples and urine (over a 24-hour period) was collected from 8 patients at baseline in normomagnesemic conditions (open circles), 12 patients on cetuximab treatment in hypomagnesemic conditions (filled circles), and patients (V3, V4) with IRH (triangles), then analyzed for FE of Mg2+. FE Mg2+ was plotted against the serum Mg2+ concentrations for the tested individuals. Hypomagnesemia in combination with an inappropriately high excretion of Mg2+ was observed in patients with the P1070L mutation as well as in individuals treated with cetuximab. Large circles represent the averaged values of patients on cetuximab treatment (filled) and patients at baseline in normomagnesemic conditions (open). Asterisk indicates a significant difference in serum (Mg2+) compared with that in control patients. P = 0.001; n = 8–12. (C) Histogram depicting the current densities at +80 mV of TRPM6-transfected cells that were exposed for 30 minutes to EGF, cetuximab, or EGF in combination with cetuximab. Cross indicates a significant difference compared with nontreated (CTRL) HEK293-TRPM6 cells. P < 0.026; n = 6.
