Maki Nakayama, Joshua N. Beilke, Jean M. Jasinski, Masakazu Kobayashi, Dongmei Miao, Marcella Li, Marilyne G. Coulombe, Edwin Liu, John F. Elliott, Ronald G. Gill, George S. Eisenbarth
Published in Volume 117, Issue 7
J Clin Invest. 2007; 117(7):1835–1843 doi:10.1172/JCI31368
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

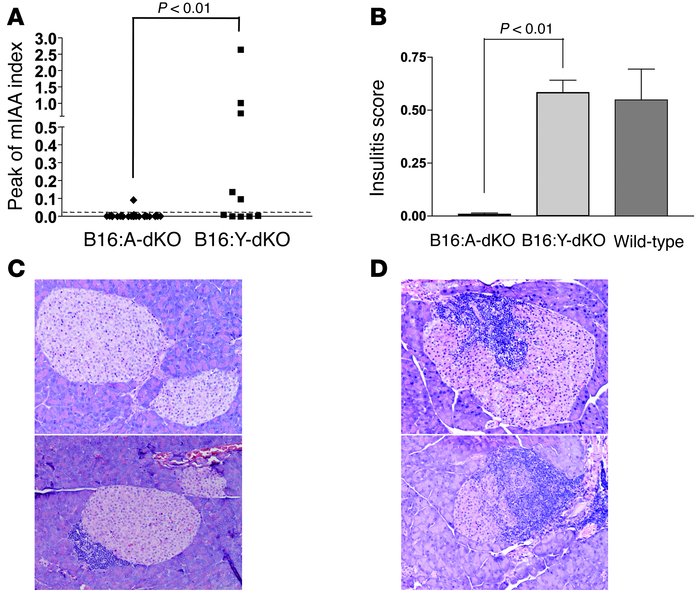

Figure 10
Provision of the native B16:Y insulin B:9–23 sequence by transgenesis induces IAAs and insulitis.

(A) B16:A-dKO and B16:Y-dKO mice were measured for the development of IAAs every 2–3 weeks between 4 and 30 weeks of age. Each symbol represents the peak level of mIAA index for individual mice. B16:Y-dKO mice developed IAAs (P < 0.01 versus B16:A-dKO). (B) Insulitis scoring of B16:A-dKO mice, B16:Y-dKO mice, and wild-type NOD mice between 10 and 22 weeks of age. B16:Y-dKO mice developed insulitis significantly more severe than did B16:A-dKO mice (P < 0.01) and as severely as did wild-type NOD mice. (C and D) Pancreatic histology (H&E; original magnification, ×100) of B16:A-dKO (C) and B16:Y-dKO (D) mice.
