Yoshikazu Nakaoka, Keigo Nishida, Masahiro Narimatsu, Atsunori Kamiya, Takashi Minami, Hirofumi Sawa, Katsuya Okawa, Yasushi Fujio, Tatsuya Koyama, Makiko Maeda, Manami Sone, Satoru Yamasaki, Yuji Arai, Gou Young Koh, Tatsuhiko Kodama, Hisao Hirota, Kinya Otsu, Toshio Hirano, Naoki Mochizuki
Published in Volume 117, Issue 7
J Clin Invest. 2007; 117(7):1771–1781 doi:10.1172/JCI30651
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium
Figure 9

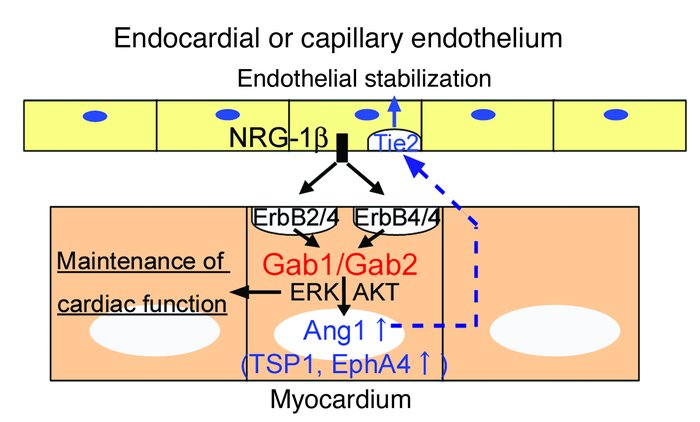

Schematic illustration of the roles of Gab family proteins in the myocardium.

NRG-1β shed from the endocardial or capillary endothelium in the heart activates ErbB receptors on the myocardium, resulting in tyrosine phosphorylation of Gab family proteins and subsequent activation of ERK and AKT. NRG-1β/ErbB–Gab1/Gab2 signaling in the myocardium is directly required for postnatal maintenance of myocardial function. In addition, NRG-1β/ErbB–Gab1/Gab2 signaling indirectly contributes to postnatal stabilization of capillary or endocardial endothelium, possibly through Ang1 upregulation (dotted line).
