Frances A. High, Maozhen Zhang, Aaron Proweller, LiLi Tu, Michael S. Parmacek, Warren S. Pear, Jonathan A. Epstein
Published in Volume 117, Issue 2
J Clin Invest. 2007; 117(2):353–363 doi:10.1172/JCI30070
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

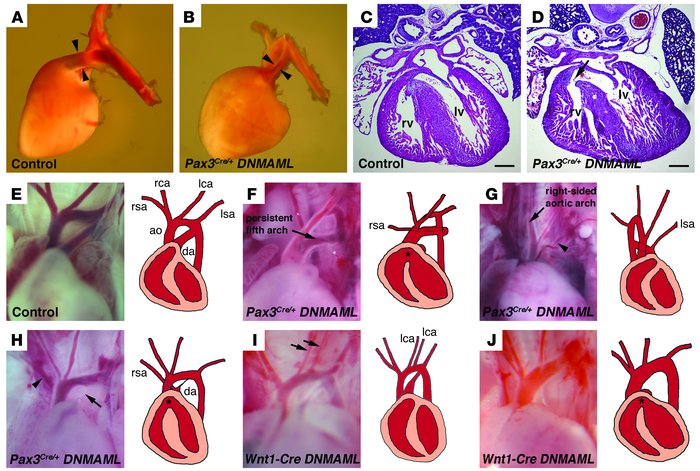

Figure 2
Neural crest–specific expression of DNMAML results in cardiac outflow tract defects.

(A and B) Lateral view of the left side of hearts removed from E17.5 control (A) and Pax3Cre/+ DNMAML (B) embryos. Compared with the control pulmonary artery, the mutant pulmonary artery and ductus arteriosus are significantly narrowed (arrowheads in A and B). (C and D) Hematoxylin and eosin stained cross-sections through the hearts of E17.5 control (C) or Pax3Cre/+ DNMAML (D) embryos demonstrate a membranous ventricular septal defect in the mutant (arrow in D). (EJ) Photographs and drawings depicting the aortic arch phenotypes in several E17.5 embryos. A control embryo (E) shows the normal branching pattern of the great vessels. (F) Pax3Cre/+ DNMAML mutant showing an abnormal arch structure similar to the human defect known as persistent fifth arch. In addition, the ductus arteriosus is absent, and there is a retroesophageal right subclavian artery. (G) Pax3Cre/+ DNMAML mutant showing a right-sided aortic arch and isolated left subclavian artery arising from the pulmonary artery (arrowhead). (H) Pax3Cre/+ DNMAML mutant with an atretic ductus arteriosus (arrow) and isolated right subclavian artery (arrowhead). (I) Wnt1-Cre DNMAML mutant showing duplication of the left common carotid artery (arrows). (J) Wnt1-Cre DNMAML mutant with an absent ductus arteriosus. The asterisk indicates ventricular septal defects that were observed upon sectioning the hearts. rv, right ventricle; lv, left ventricle; ao, aorta; da, ductus arteriosus; rsa, right subclavian artery; rca, right common carotid artery; lca, left common carotid artery; lsa, left subclavian artery. Scale bars: 200 μm.
