Balasubramanian Krishnamurthy, Nadine L. Dudek, Mark D. McKenzie, Anthony W. Purcell, Andrew G. Brooks, Shane Gellert, Peter G. Colman, Leonard C. Harrison, Andrew M. Lew, Helen E. Thomas, Thomas W.H. Kay
Published in Volume 116, Issue 12
J Clin Invest. 2006; 116(12):3258–3265 doi:10.1172/JCI29602
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

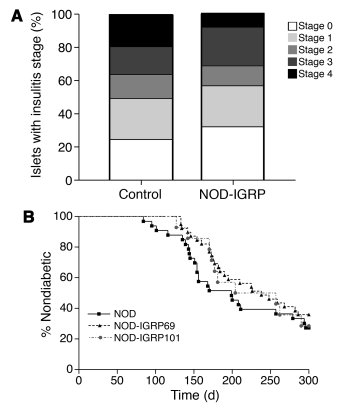

Figure 9
Insulitis and T1D in NOD-IGRP versus control mice.

(A) Histological grading of insulitis in pancreas sections of 100-day-old mice (n = 8 per group). P = NS, NOD-IGRP versus controls. (B) Incidence of T1D in NOD-IGRP mice (founder lines NOD-IGRP 69, n = 39; and NOD-IGRP 101, n = 18) and control littermates (n = 33). P = NS, NOD-IGRP versus controls.
