Sandrine Billet, Sabine Bardin, Sonia Verp, Véronique Baudrie, Annie Michaud, Sophie Conchon, Martine Muffat-Joly, Brigitte Escoubet, Evelyne Souil, Ghislaine Hamard, Kenneth E. Bernstein, Jean Marie Gasc, Jean-Luc Elghozi, Pierre Corvol, Eric Clauser
Published in Volume 117, Issue 7
J Clin Invest. 2007; 117(7):1914–1925 doi:10.1172/JCI28764
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

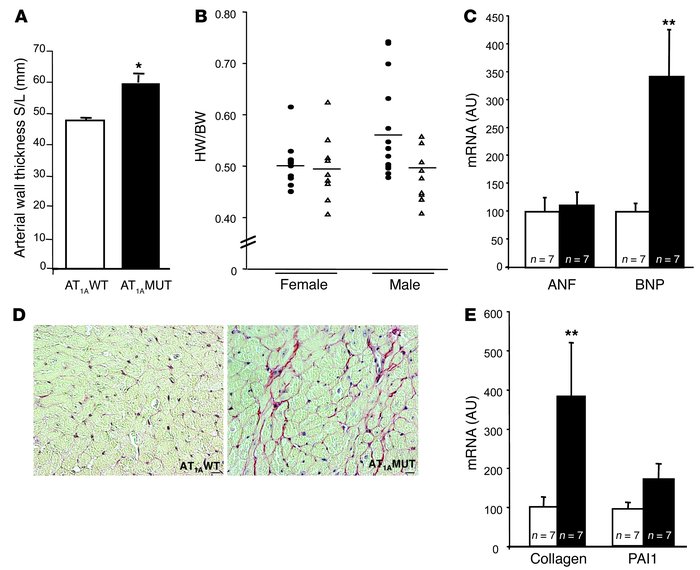

Figure 8
Cardiovascular characterization of AT1AMUT and AT1AWT mice.

(A) Vascular morphology was assessed by morphometric analysis of the wall thickening ratio (S/L) in renal arteries in 5-month-old AT1AWT (white bar) and AT1AMUT (black bar) littermates. Three mice were studied in each group, and a mean of 20 arteries were measured in each mouse. *P < 0.05 compared with AT1AWT. (B) Cardiac hypertrophy was assessed by the ratio of heart weight to body weight (HW/BW) in 6- to 10-month-old AT1AWT (white triangles) and AT1AMUT (black circles) littermates. (C) Quantitative RT-PCR of ANF and BNP mRNA in AT1AWT (white bars) and AT1AMUT (black bars) hearts. (D) Myocardial sections from 5-month-old AT1AWT and AT1AMUT mice were stained with Sirius red. Scale bar: 10 μm. (E) Quantitative RT-PCR of collagen αI and PAI1 mRNA in AT1AWT (white bars) and AT1AMUT (black bars) hearts. **P < 0.01 compared with AT1AWT.
