Juscilene S. Menezes, Peter van den Elzen, Jordan Thornes, Donald Huffman, Nathalie M. Droin, Emanual Maverakis, Eli E. Sercarz
Published in Volume 117, Issue 8
J Clin Invest. 2007; 117(8):2176–2185 doi:10.1172/JCI28277
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

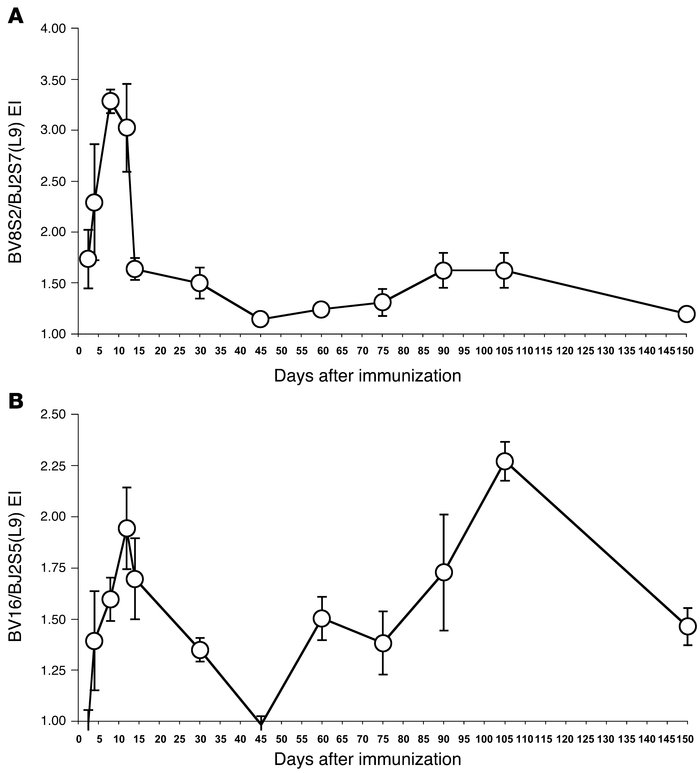

Figure 5
BV8S2/BJ2S7 expansion parallels disease.

At the indicated time points after immunization, draining lymph node cells were harvested and stimulated in vitro with Ac1–9. cDNA was amplified by RT-PCR as described in Methods. Shown are expansion indexes (EIs) of the single CDR3 expansions, (A) BV8S2/BJ2S7(L9) and (B) BV16/BJ2S5(L9). An EI of 1 represents the particular expansion peak compared with its expansion within the Gaussian distribution; values above or below this limit show positive or negative expansions of the peak, respectively.
