Dan Yang, Ying Zhang, Hao G. Nguyen, Milka Koupenova, Anil K. Chauhan, Maria Makitalo, Matthew R. Jones, Cynthia St. Hilaire, David C. Seldin, Paul Toselli, Edward Lamperti, Barbara M. Schreiber, Haralambos Gavras, Denisa D. Wagner, Katya Ravid
Published in Volume 116, Issue 7
J Clin Invest. 2006; 116(7):1913–1923 doi:10.1172/JCI27933
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Jci0627933

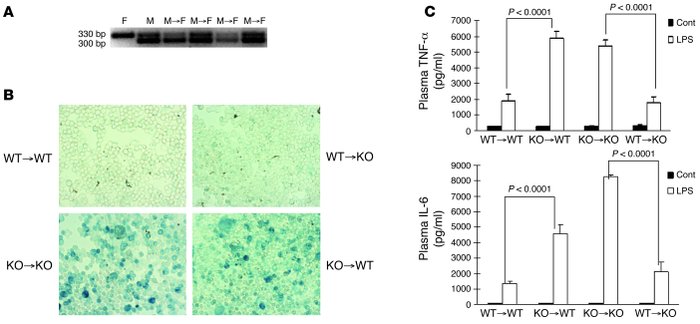

Figure 6
Signals derived from bone marrow cells enhance cytokine production and expression of adhesion molecules in A2B AR KO mice.

(A) PCR analysis of DNA from the transplanted mice, including males (M) to females (F), and expected PCR products, as detailed in Methods. (B) Under these conditions, the average efficiency of transplantation was assessed as 97.5% ± 6.9% (SDs of 4 measurements) by monitoring the percentage of β-gal–positive KO peritoneal macrophages in transplanted WT mice (performed as in Figure 2D). This mode of assessment was possible since the total number of macrophages was similar in the different transplanted mice. (C) LPS-induced cytokine levels in the plasma. Mice were injected with vehicle (control) or LPS (5 μg/g body weight), and plasma cytokine levels of TNF-α and of IL-6 were determined after 1 hour and 16 hours, respectively, following the elevation peaks noted in Figure 3B. Results are presented as average ± SD of 4 experiments. In each case, bone marrow cells were derived from a genetic background (denoted on the left as WT or KO) and transplanted (denoted by an arrow) into a recipient (denoted on the right) (e.g., WT→WT). Similar results were obtained when mice were injected with 1 μg/g body weight LPS (data not shown).
