Sagi Tshori, Dan Gilon, Ronen Beeri, Hovav Nechushtan, Dmitry Kaluzhny, Eli Pikarsky, Ehud Razin
Published in Volume 116, Issue 10
J Clin Invest. 2006; 116(10):2673–2681 doi:10.1172/JCI27643
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

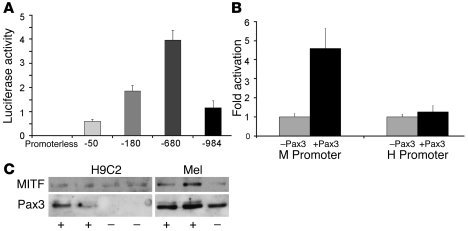

Figure 2
Characterization of MITF promoter in cardiomyocytes.

(A) Luciferase reporters under the control of various fragments of MITF H promoter were transfected into H9C2 cardiomyocytes. Designations of the promoter fragments are relative to the transcription start site. The luciferase activity was normalized using total protein concentrations. Results represent mean ± SEM of 1 representative experiment out of 3. (B) Luciferase reporter under the control of either MITF M or MITF H promoter was cotransfected with Pax3 expression vector into NIH 3T3 cells. Pax3 overexpression activated the MITF M promoter but not the MITF H promoter. Results were normalized as described above, and fold activation values were calculated. (C) Pax3 expression vector was transfected into melanocytes (mel) and H9C2 cells. Expression of Pax3 and MITF was assessed by Western blot analysis. Pax3 overexpression resulted in raised MITF levels in melanocytes alone. One representative experiment out of 3 is shown.
