James Cantley, Colin Selman, Deepa Shukla, Andrey Y. Abramov, Frauke Forstreuter, Miguel A. Esteban, Marc Claret, Steven J. Lingard, Melanie Clements, Sarah K. Harten, Henry Asare-Anane, Rachel L. Batterham, Pedro L. Herrera, Shanta J. Persaud, Michael R. Duchen, Patrick H. Maxwell, Dominic J. Withers
Published in Volume 119, Issue 1
J Clin Invest. 2009; 119(1):125–135 doi:10.1172/JCI26934
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

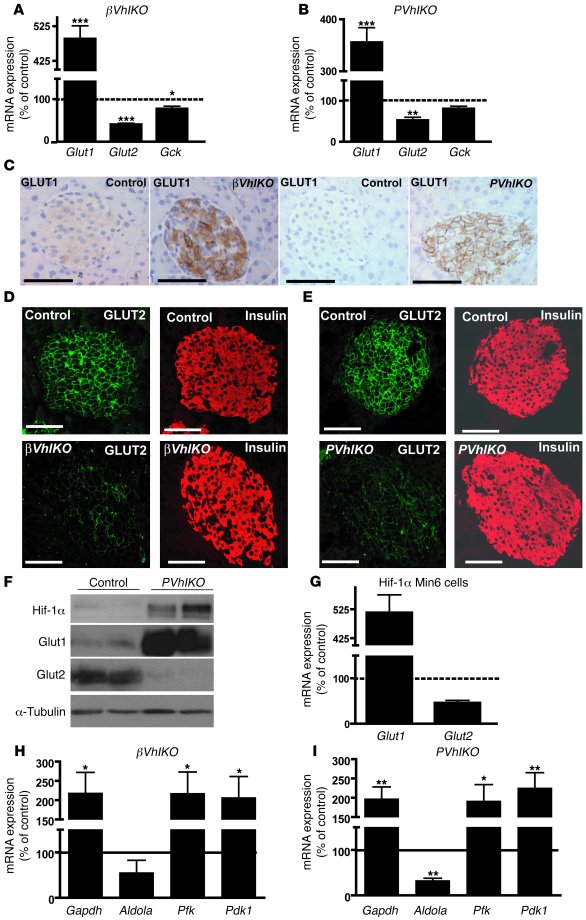

Figure 4
Abnormal expression of glucose-sensing apparatus and glycolytic genes in βVhlKO and PVhlKO mice.

(A and B) Expression of Glut1, Glut2, and Gck mRNA in βVhlKO and PVhlKO islets relative to control islets. n = 5. (C) Glut1 immunostaining in control, βVhlKO, and PVhlKO islets. Representative images are shown. Scale bars: 150 μm. (D and E) Glut2 (green) and insulin (red) staining in control, βVhlKO, and PVhlKO islets. Representative images are shown. Scale bars: 100 μm. (F) Western blotting for Hif-1α, Glut1, Glut2, and α-tubulin (loading control) in islets isolated from PVhlKO mice. Glut1, Glut2, and α-tubulin were resolved on a 10% gel, and blots were probed and stripped for each of the 3 antibodies. Hif-1α was analyzed on a separate 6% gel with an equal amount of the same cell lysate loaded. Representative blots are shown and are typical of 2 independent experiments. (G) Expression of Glut1 and Glut2 mRNA in Min6 cells transfected with activated HIF1α mutant relative to empty vector–transfected control cells. n = 3. (H and I) Expression of Gapdh, Aldola, Pfk, and Pdk1 mRNA in isolated βVhlKO and PVhlKO islets relative to control islets. n = 5. *P < 0.05, **P < 0.01, ***P < 0.001 compared with control.
