Farnaz D. Fakhari, Joseph H. Jeong, Yogita Kanan, Dirk P. Dittmer
Published in Volume 116, Issue 3
J Clin Invest. 2006; 116(3):735–742 doi:10.1172/JCI26190
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium
Figure 5

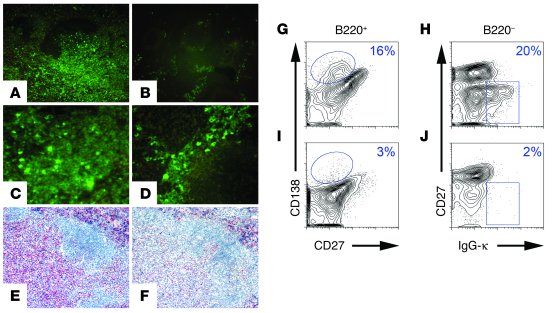

Anaplastic plasmacytoma in a LANA transgenic animal. (AD) IgG-κ expression (surface and intracellular) in a lymphoma from LANA transgenic (A and C) and nontransgenic (B and D) littermates. (E and F) CXC-chemokine receptor 4 (CXCR4) for expression in LANA transgenic (E) or control (F) mice. Magnification, ×100 (A, B, E, and F); ×400 (C and D). All sections are counterstained blue with hematoxylin. (G and H) Flow cytometry analysis of the anaplastic plasmacytoma. (I and J) Flow cytometry analysis of spleen of a nontransgenic littermate. (G and I) Gates represent CD138+B220+CD27 lymphoma cells at 16% frequency and normal spleen cells at 3% frequency. (H and J) Gates represent IgG-κ+B220CD27 lymphoma cells at 20% frequency and normal spleen cells at 2% frequency.
