Rajesh K. Thimmulappa, Hannah Lee, Tirumalai Rangasamy, Sekhar P. Reddy, Masayuki Yamamoto, Thomas W. Kensler, Shyam Biswal
Published in Volume 116, Issue 4
J Clin Invest. 2006; 116(4):984–995 doi:10.1172/JCI25790
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

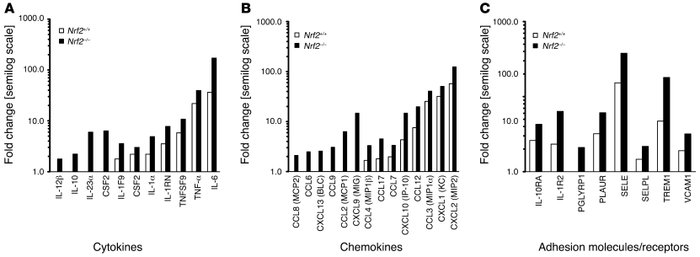

Figure 4
Greater expression of proinflammatory genes associated with the innate immune response in the lungs of Nrf2-deficient mice.

(AC) Expression of cytokines (A), chemokines (B), and adhesion molecules/receptors (C) 30 minutes after nonlethal i.p. injection of LPS (60 μg per mouse) in Nrf2-deficient and wild-type mice. Gene expression data were obtained from microarray analysis. Data are represented as mean fold change obtained from comparing LPS-challenged to vehicle-treated lungs of the same genotype on a semilog scale. All the represented fold change values of LPS-treated lungs of Nrf2–/– mice are significant compared with wild-type mice at P <0.05.
