Thorsten M. Seyler, Yong W. Park, Seisuke Takemura, Richard J. Bram, Paul J. Kurtin, Jörg J. Goronzy, Cornelia M. Weyand
Published in Volume 115, Issue 11
J Clin Invest. 2005; 115(11):3083–3092 doi:10.1172/JCI25265
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

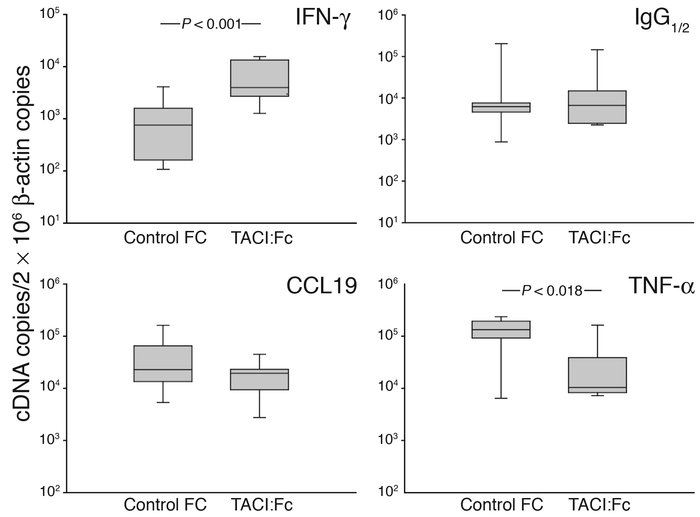

Figure 8

Therapeutic effects of TACI:Fc in aggregate synovitis. Human synovium–SCID mouse chimeras implanted with synovial tissues with aggregates were treated with TACI:Fc or control Fc and then analyzed as described in Figure 6. Results from experiments with tissues from 5 patients are shown. Blocking APRIL/BLyS left production of IgG1/2 transcripts totally unaffected. Following treatment with TACI:Fc, IFN-γ production markedly increased. DC function assessed through CCL19 remained unchanged. Transcription of TNF-α was significantly diminished. Results are given as box plots, as described in Figure 1.
