Andrew D. Hislop, Michael Kuo, Adrian B. Drake-Lee, Arne N. Akbar, Wolfgang Bergler, Nicolas Hammerschmitt, Naeem Khan, Umaimainthan Palendira, Alison M. Leese, Judith M. Timms, Andrew I. Bell, Christopher D. Buckley, Alan B. Rickinson
Published in Volume 115, Issue 9
J Clin Invest. 2005; 115(9):2546–2555 doi:10.1172/JCI24810
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

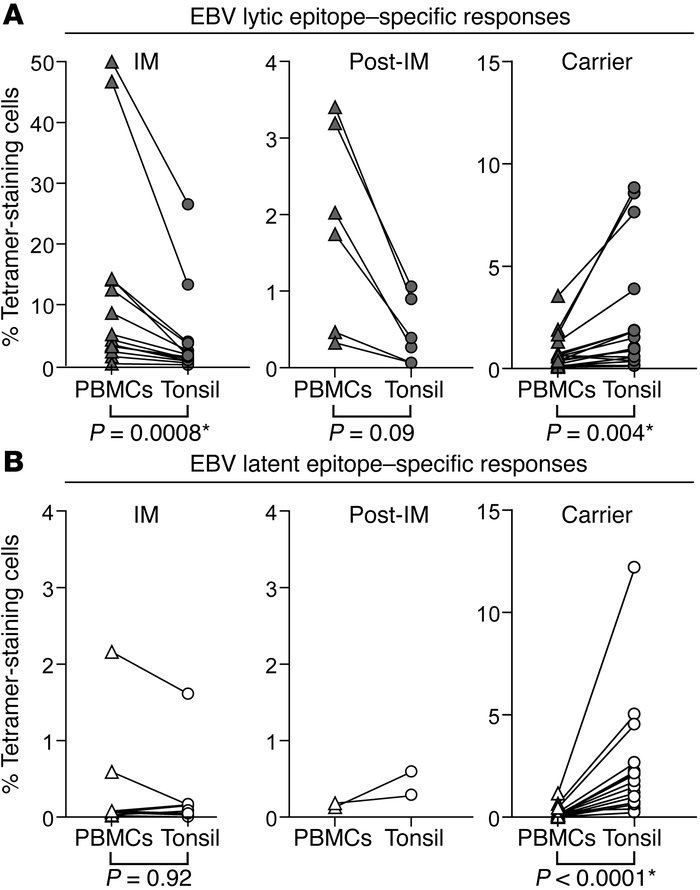

Figure 3

Summary of the frequency of EBV-specific responses in the PBMCs and tonsils of 6 IM, 2 post-IM, and 11 long-term carrier tonsillectomy patients; symbols connected by a line refer to a particular epitope-specific response in an individual donor. (A) Percentage of CD8+ T cells staining with EBV lytic epitope–specific tetramers in IM (left panel) and post-IM (middle panel) patients and long-term carriers (right panel). (B) Percentage of CD8+ T cells staining with EBV latent epitope–specific tetramers in IM (left panel) and post-IM (middle panel) patients and long-term carriers (right panel). P values shown were obtained using linear mixed model analysis as described in Methods. Significant differences are indicated by an asterisk. In addition, in acute IM, the reduction in epitope-specific T cell representation in tonsil relative to blood was significantly greater for lytic than for latent reactivities (P = 0.004); also, in carriers, the increase in epitope-specific T cell representation in tonsil relative to blood was significantly greater for latent than for lytic epitopes (P = 0.003).
