Zhi Huang, Sruti Shiva, Daniel B. Kim-Shapiro, Rakesh P. Patel, Lorna A. Ringwood, Cynthia E. Irby, Kris T. Huang, Chien Ho, Neil Hogg, Alan N. Schechter, Mark T. Gladwin
Published in Volume 115, Issue 8
J Clin Invest. 2005; 115(8):2099–2107 doi:10.1172/JCI24650
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

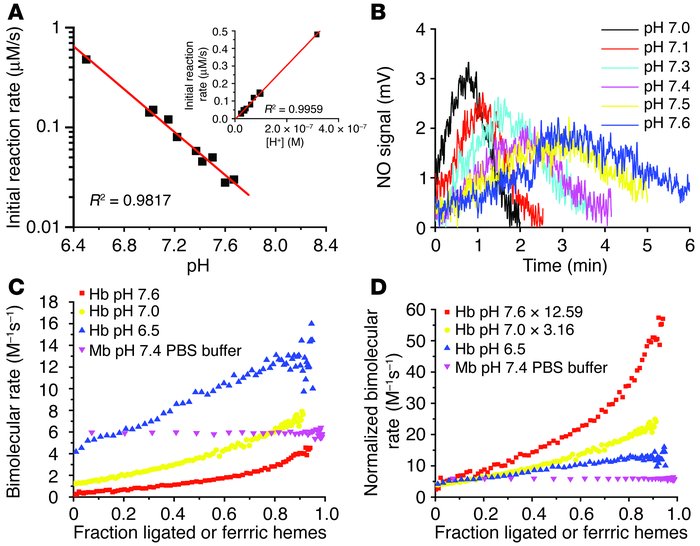

Figure 5

Effect of pH on the nitrite reductase reaction. (A) The initial rate (found by the polynomial fitting of the rate of deoxyheme consumption over fraction ligated) of the reaction of nitrite (2.5 mM) with deoxyHb (45 μM heme) at different pH values in 0.01 M phosphate buffer. Inset shows the initial rate plotted against concentration of proton. (B) NO gas measured by chemiluminescence from the reactions shown in A. (C) The bimolecular rate of the reaction of nitrite with deoxyHb in phosphate buffer at pH 7.6, 7.0, and 6.5 and deoxymyoglobin in PBS buffer at pH 7.4 over heme ligand and oxidation states. (D) Correction factors 12.59 and 3.16 (given by 10pH – 6.5) were multiplied by the bimolecular rates at pH 7.6 and 7.0, respectively (shown in C) to eliminate the contribution of changing proton concentrations to the bimolecular rate.
