Luca Gattinoni, Christopher A. Klebanoff, Douglas C. Palmer, Claudia Wrzesinski, Keith Kerstann, Zhiya Yu, Steven E. Finkelstein, Marc R. Theoret, Steven A. Rosenberg, Nicholas P. Restifo
Published in Volume 115, Issue 6
J Clin Invest. 2005; 115(6):1616–1626 doi:10.1172/JCI24480
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium
Figure 8

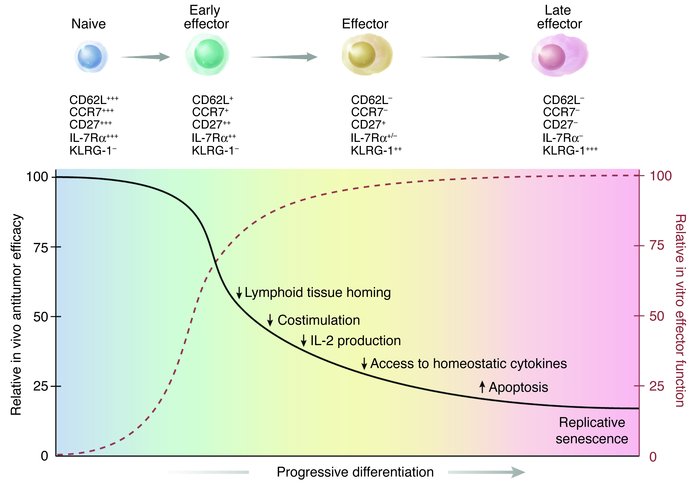

A schematic illustration summarizing results indicating the inverse relationship of in vitro and in vivo effector functions of adoptively transferred naive and effector T cell subsets. After primary antigen stimulation, naive CD8+ T cells proliferate and progressively differentiate into terminally differentiated effector T cells. Phenotypic and functional changes characterize the differentiation process. The gradual acquisition of complete effector functions (dashed red line) is associated with the progressive inability of T cells to cause tumor regression upon adoptive transfer (black line). Such mechanisms initially involve the downregulation of lymphoid-homing and costimulatory molecules, which results in a poor in vivo activation of T cells. Other mechanisms occur later and include the inability to produce IL-2 and access homeostatic cytokines, the imbalance of proapoptotic and anti-apoptotic signals, and the acquisition of a state of replicative senescence. +, low expression; ++, intermediate expression; +++, high expression.
